SXC-SK01-C8A1 — 1–40 Channel Online Controller

SXC-SK01-C8A1 Pulse Controller

The upgraded successor to the classic SXC-X8A1: the same enclosure and mounting dimensions, much wider timing ranges, dual AC220V/DC24V power input, and on-site jog debugging — microprocessor pulse-jet control with strong interference immunity for baghouse dust collectors.

View Technical SpecsRequest a Quote

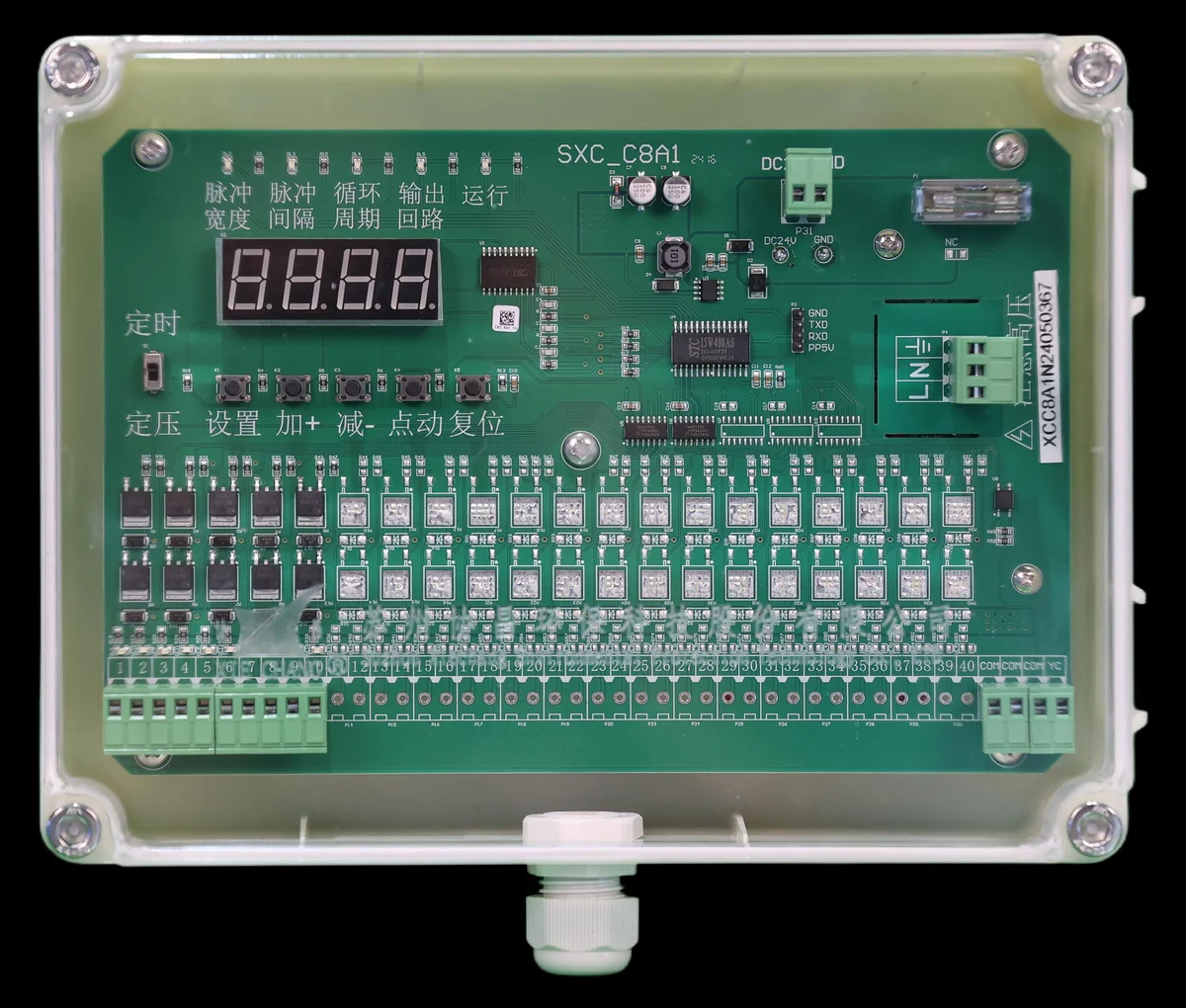

Xiechang® SXC-SK01-C8A1 pulse controller, 40-channel board in transparent PC enclosure

Technical Parameters

Core operating specification.

Control Capacity1–40 pulse valves (10/20/30/40-channel versions)
Input VoltageAC220V (±10%) 50/60Hz or DC24V — either may be connected
Output VoltageDC24V
Output Current1.2A
Rated Power30W
Pulse Width Range0.01–99.99 s in 10 ms steps (factory setting 0.08 s)
Pulse Interval Range1–9999 s in 1 s steps (factory setting 10 s)
Cycle Time Range0–9999 min in 1 min steps (factory setting 0 min)
Control ModesTimed sequential / differential-pressure dry-contact trigger; remote dry-contact trigger supported
On-site DebuggingJog key fires valves one by one for commissioning; reset key
DisplayDigital LED display of active channel and countdowns; brightness adjustable
EnclosureTransparent hanging PC shell, 190 × 255 × 105 mm; mounting holes 234 × 174 mm
Operating Environment−20°C to +60°C; relative humidity ≤85% (non-condensing)

Product Standards

The X8A1 platform, rebuilt for wider ranges and easier commissioning.

Drop-in UpgradeSame enclosure and mounting dimensions as the SXC-X8A1 — replaces it without rework
Wider Timing RangesPulse width 0.01–99.99 s (was 0.02–2.55 s); interval to 9999 s; cycle to 9999 min
Dual Power InputRuns from AC220V or DC24V — one controller for both plant standards
Jog DebuggingNew per-valve manual firing mode speeds up on-site commissioning and fault-finding
Higher Efficiency1.2A output with ≤30W consumption and wider −20°C to +60°C operating range
Strong ImmunityMicroprocessor control with strong anti-interference design for stable operation

Certifications

Third-party certified for this product line.

View all certificates →
CE Verification of EMC Compliance — SXC-SK01-C8A1/C8A8/C8A9 Pulse Controllers🔍 Click to enlarge

Product Certification

Models covered (4)

SXC-SK01-C8A1 · SXC-SK01-C8A8 · SXC-SK01-C8A9 · SXC-SK01-C8A

CE Verification of EMC Compliance — SXC-SK01-C8A1/C8A8/C8A9 Pulse Controllers

Certificate No.CEJS25020766656
Issued byGlobal Testing Services Co., Ltd. (Shanghai)
Issued2025-03-10
Valid until2030-03-09
StandardsEN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A2:2021
Need the original PDF?
CE Certificate (LVD + EMC) — SXC-SK01-C8A Series Pulse Controller🔍 Click to enlarge

Product Certification

SXC-SK01-C8A1 · SXC-SK01-C8A8 · SXC-SK01-C8A9

CE Certificate (LVD + EMC) — SXC-SK01-C8A Series Pulse Controller

Certificate No.CLJS25091275734
Issued byGlobal Testing Services Co., Ltd. (GTS)
Issued2025-09-18
Valid until2030-09-17
StandardsEN 61010-1:2010+A1:2019, EN IEC 61326-1:2021, EN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A2:2021
Need the original PDF?

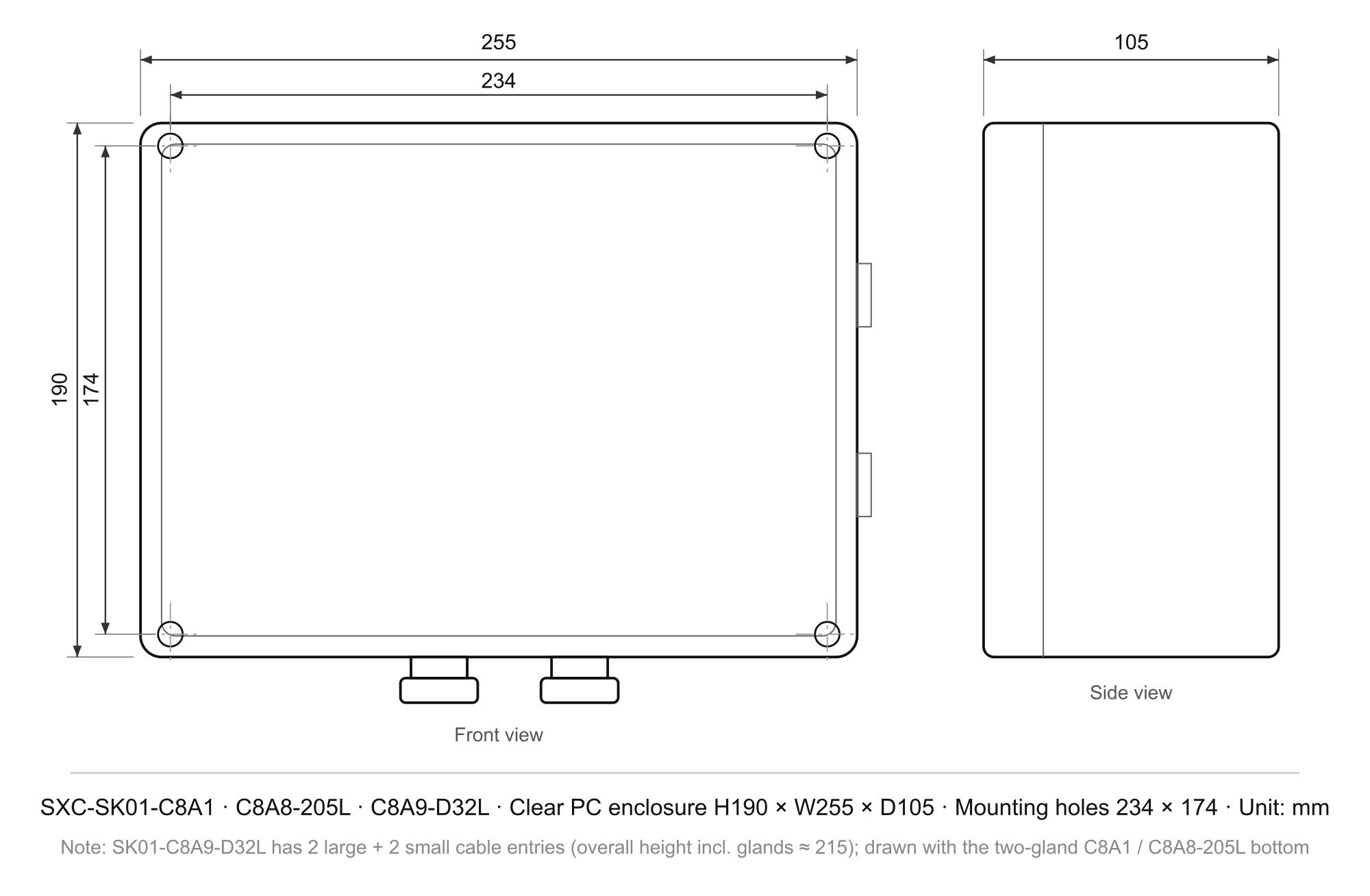

Technical Drawings

Installation dimensions for this product.

Knowledge Base

Practical answers for this product.

View All
Product Q&A

Is the SXC-SK01-C8A1 a drop-in replacement for the SXC-X8A1 pulse controller?

Yes. The SXC-SK01-C8A1 was engineered as the direct successor to the SXC-X8A1 after some of the older model’s electronic components reached end of life. It uses the same enclosure and mounting dimensions, supports every X8A1 function, and fits an existing installation without rework.

SXC-SK01-C8A1X8A1 replacementdrop-in upgrade
Product Q&A

How do I read Xiechang pulse-controller model numbers such as SXC-SK01-C8A9-D32L-P?

SXC is the Xiechang controller prefix. SK = transparent PC plastic shell, JK = metal enclosure. C8Ax/C8Bx/C5A1 identifies the electronics platform. The tail encodes channels: 205L = 20 pulse + 5 lift valves, D32L/D36L = 32/36 freely-allocated channels, plain -10/20/30/40L = pulse-valve count. A final -P means a built-in differential-pressure sensor is fitted, -M means without; FB marks explosion-proof models.

pulse controller model numberSXC namingD32L meaning
Product Q&A

Which Xiechang pulse controller should I choose for my dust collector?

For small collectors up to 8 valves choose the SXC-C5A1-8; for standard online cleaning up to 40 valves the SXC-SK01-C8A1; for offline cleaning with lift valves the SXC-SK01-C8A8-205L (20+5), C8A9-D32L (32 channels, built-in ΔP option, Modbus) or JK01-C8B2-D36L (36 channels, aluminium shell, 6 digital inputs, master–slave); for ΔP-integrated control in one box the SXC-X8A5 or X8A7; and for explosion-proof areas the SXC-X8A4-FB or SXC-FB-40.

pulse controller selectionwhich controllercontroller for dust collector
Advantages

How are Xiechang pulse controllers tested for reliability before release?

Type testing covers supply extremes (AC175–185V and AC240–250V), output short-circuit protection, double-coil load per channel, 120-hour continuous runs at both −30°C and +70°C, 2-hour 30 Hz vibration, packaged 2-metre drop tests, pulse-width accuracy checks at 100/150/200 ms, and communication tests including 120 m cable runs and 20 controllers on one PLC.

reliability testingtype testlow temperature test
