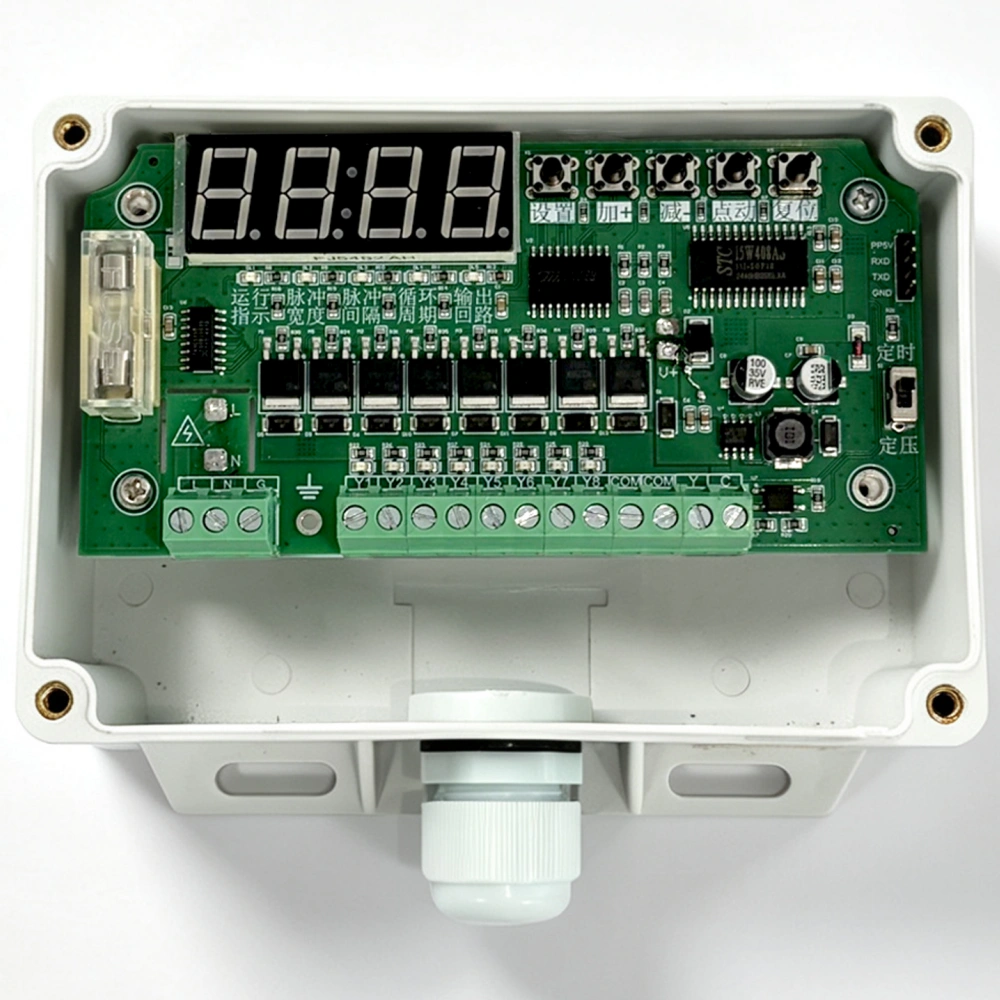

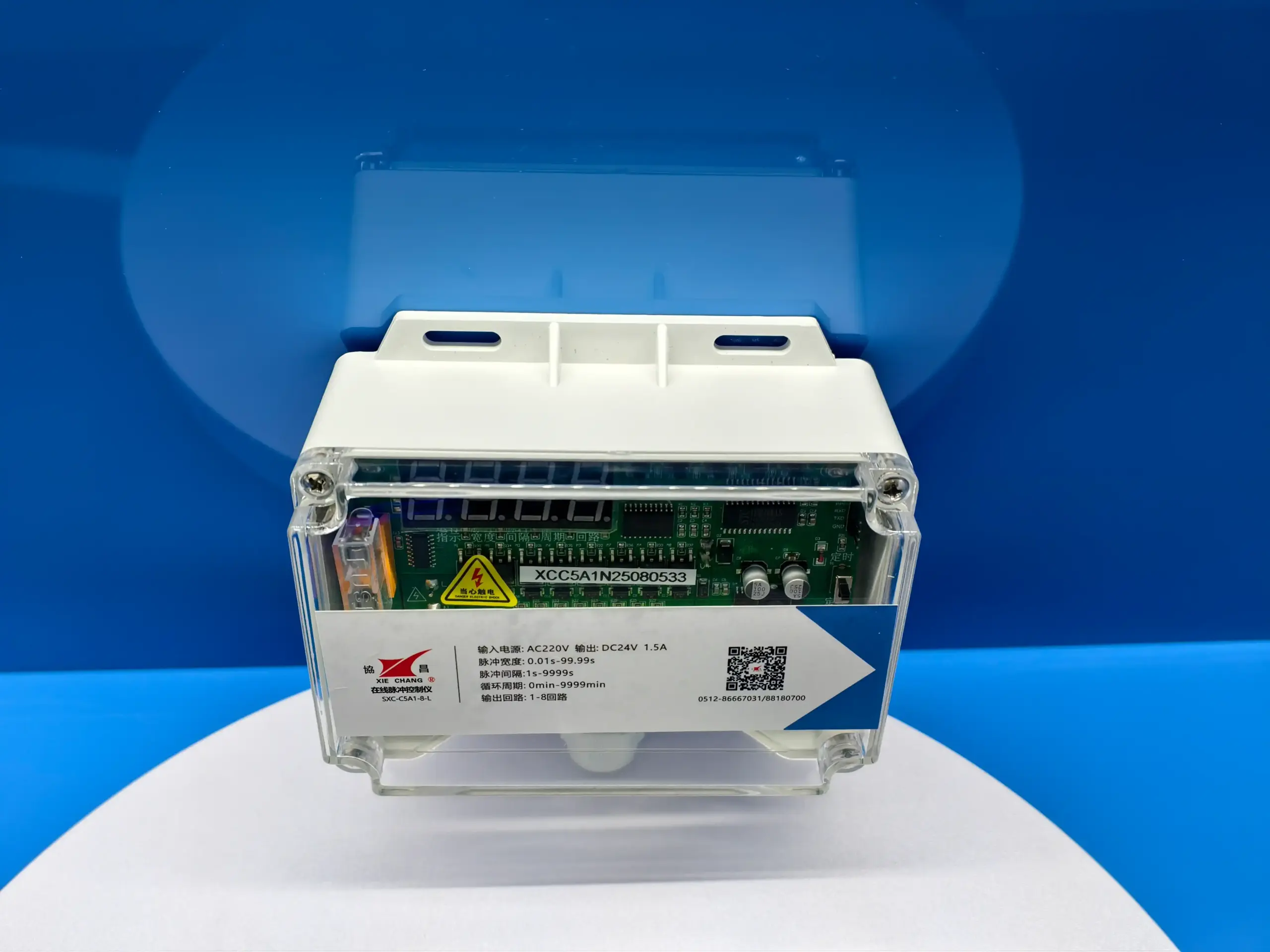

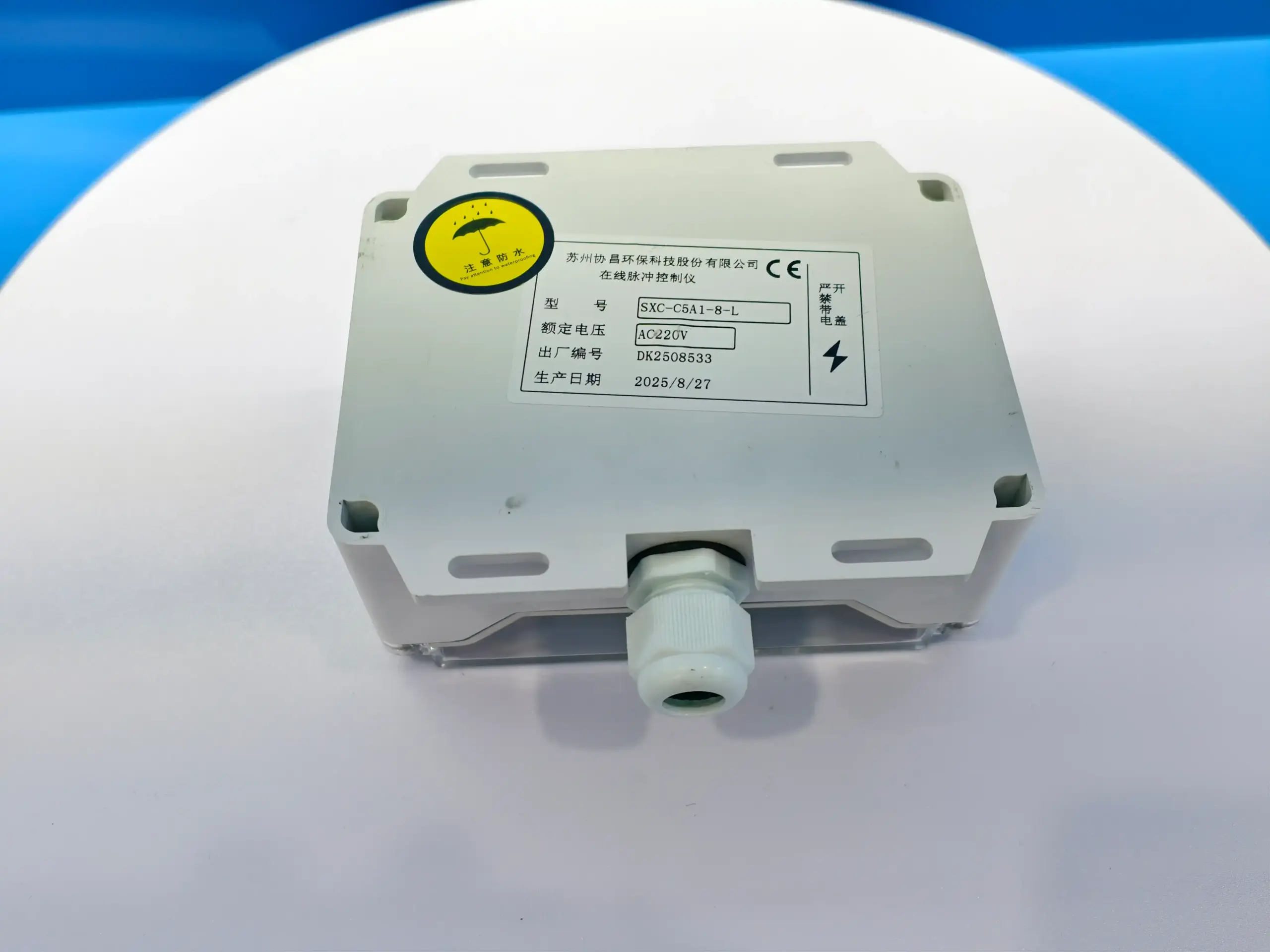

SXC-C5A1-8-L — 8-Channel Timer Board
SXC-C5A1-8-L Pulse Jet Control Instrument
A high-precision 8-circuit timer board with wide-voltage input, delivering stable DC24V output to trigger solenoid pulse valves reliably in demanding baghouse environments.
Technical Parameters
Core operating specification.
BrandXiechang® (Original Manufacturer)
Model NumberSXC-C5A1-8-L
Control Channels1–8 circuits (field adjustable)
Input VoltageAC110–230V (±10%), 50/60Hz — wide voltage (earlier revision: AC220V)
Output VoltageDC24V
Output Current1.2A
Rated Power30W
Pulse Width Range0.01–99.99 s in 10 ms steps (factory setting 0.08 s)
Pulse Interval Range1–9999 s in 1 s steps (factory setting 10 s)
Cycle Time Range0–9999 min (factory setting 0 min)
Trigger ModesTimed sequential / differential-pressure dry contact (YC terminals) with DP enable time 0.01–9.99 s
Start-up Delay0–999 s, skippable from the keypad
DisplayFour-digit LED, two selectable run views, adjustable brightness

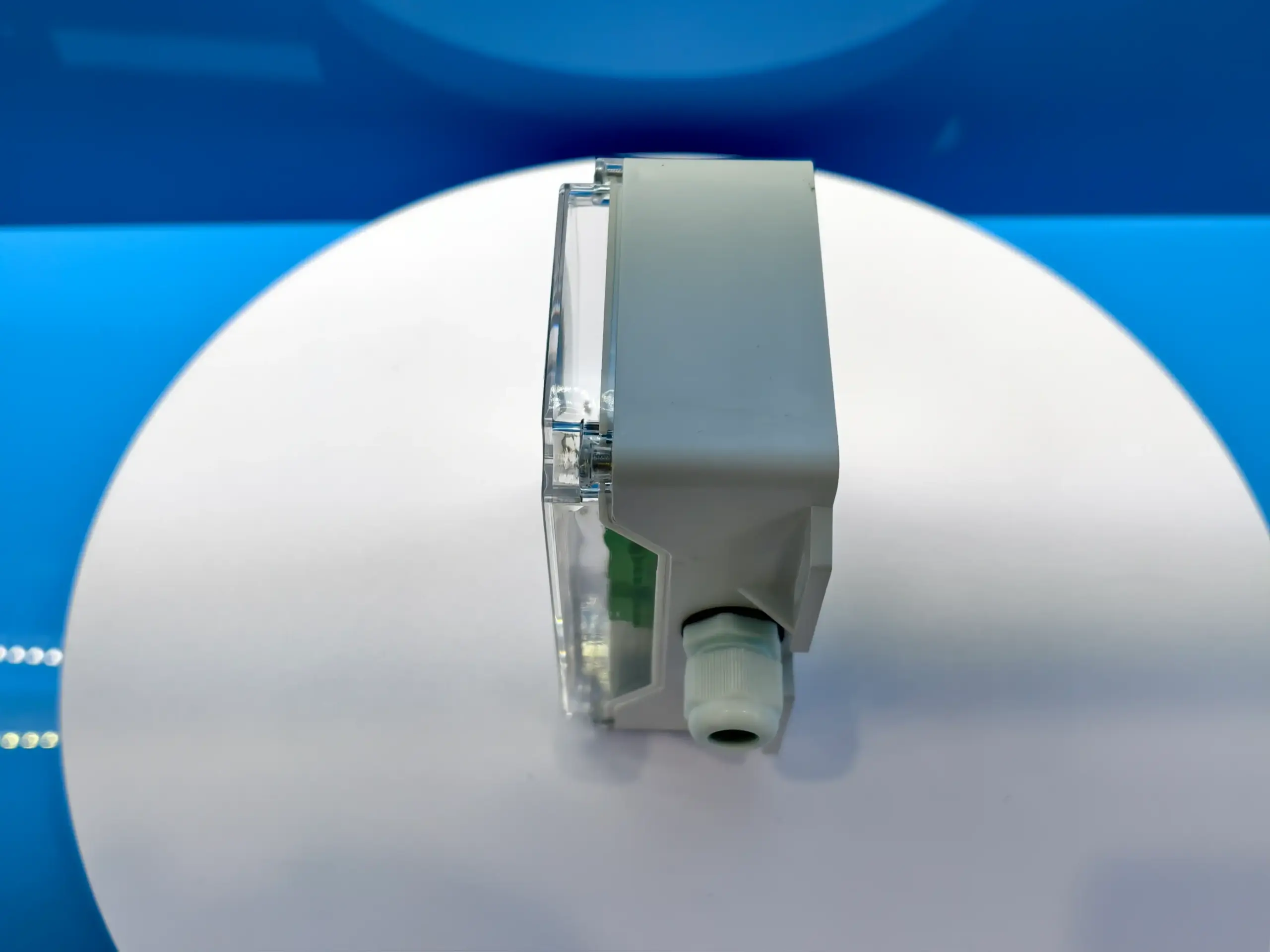

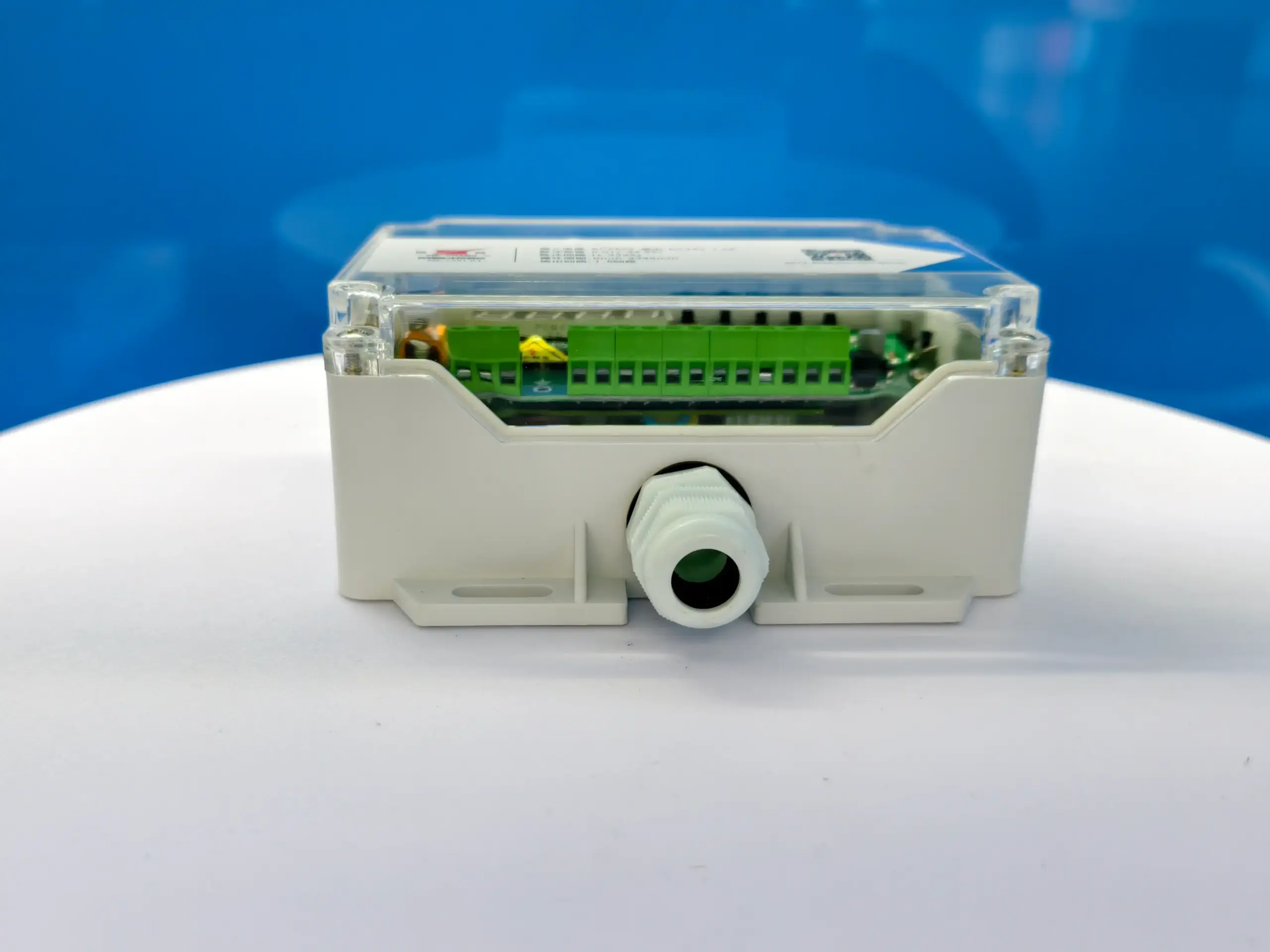

EnclosureHanging transparent PC shell, 145 × 124 × 65 mm; mounting hole centres 130 × 86 mm
Operating Environment−20°C to +60°C; relative humidity ≤85%, non-condensing
Product Standards
Built for reliable on-site baghouse control.
BuildCoated PCB resists dust, moisture, and vibration
InterfaceIntegrated digital display with tactile on-site programming buttons
Drive CapabilityStable full-rated output drives 24V solenoid valves without lag or voltage drop
Product Videos
Related demonstrations and selection videos.
Technical Drawings
Installation dimensions for this product.
🔍 Click to enlargeSXC-C5A1-8L

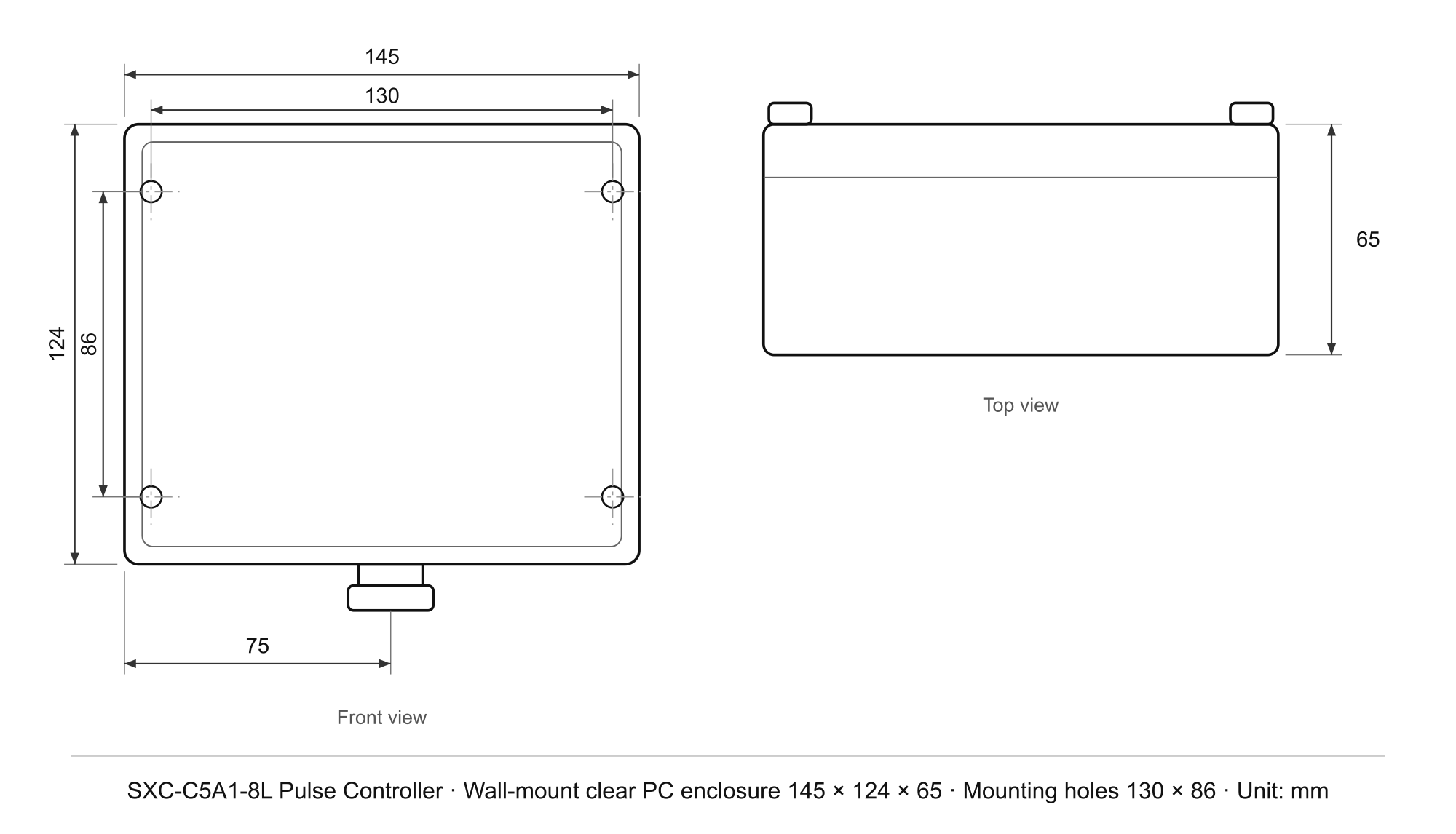

SXC-C5A1-8L · 1–8 ch · pulse controller — Enclosure & Mounting Drawing
| Overall width | 145 mm |
|---|---|
| Overall height | 124 mm |
| Depth | 65 mm |
| Mounting hole spacing (W) | 130 mm |
| Mounting hole spacing (H) | 86 mm |
| Cable entry offset from left | 75 mm |
Knowledge Base
Practical answers for this product.
Product Q&A
Is the compact SXC-C5A1-8 the right pulse controller for a small dust collector?
For a small single filter with a handful of pulse valves and no PLC supervision, yes — the C5A1-8 is the entry point of the range: wide-voltage supply, timed or differential-pressure-triggered cleaning from a dry contact, and jog debugging from the keypad. If you need Modbus, lift-valve control or more channels, step up to a C8-series model. Its ratings are in the technical parameters table on this page.
SXC-C5A1-8small baghouse controller8 channel pulse controller
