SXC-8A4 — Classic 8–48 Way Online Controller

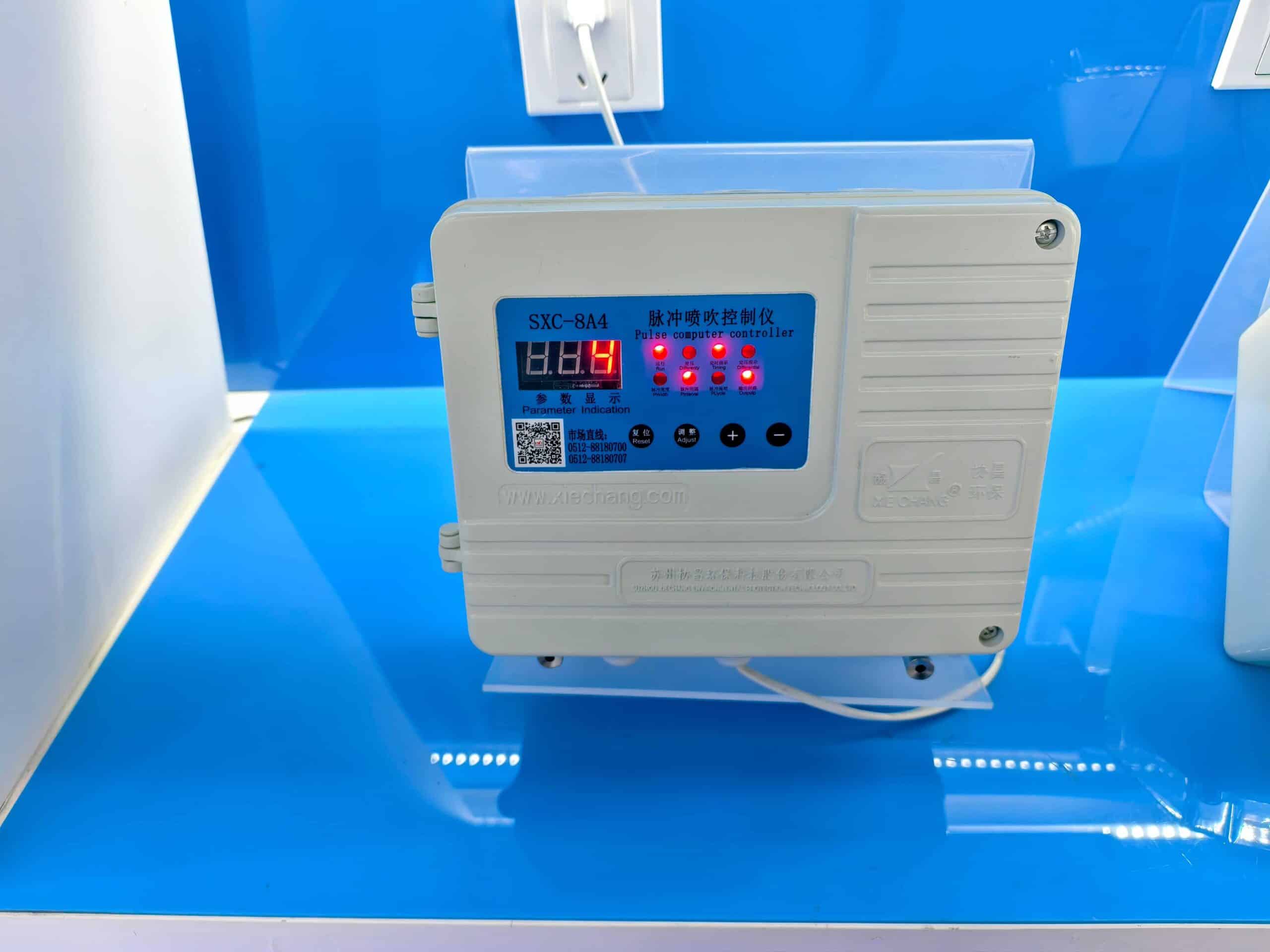

SXC-8A4 Classic Pulse Controller
A rugged IP65 online controller for pulse-jet dust collectors, scaling from 8 to 48 output channels with high-current DC24V valve drive, field-adjustable timing, anti-interference circuitry, and optional differential-pressure cleaning.
Technical Parameters
Core operating specification.
Available Output Configurations8, 16, 24, 32, 40, or 48 channels
Active Channel ControlField-adjustable to match the connected valve count
Pulse Width0.02–2.55 s; factory setting 0.08 s
Pulse Interval1–255 s; factory setting 10 s
Cycle Interval0–255 min for continuous or intermittent cleaning
Input PowerAC220V (±10%), 50–60Hz
Output PowerDC24V / 1.5A
Enclosure RatingIP65, dust-tight and weather-resistant
Operating Temperature−20°C to +50°C
Relative Humidity≤85%
Installation EnvironmentStatic mounting away from violent vibration
Product Standards
Field-ready control for demanding dust collection systems.
Anti-InterferenceNoise-suppression circuitry helps prevent false triggering near VFDs and heavy motors
Cleaning ModesStandard timed cleaning plus optional differential-pressure demand cleaning

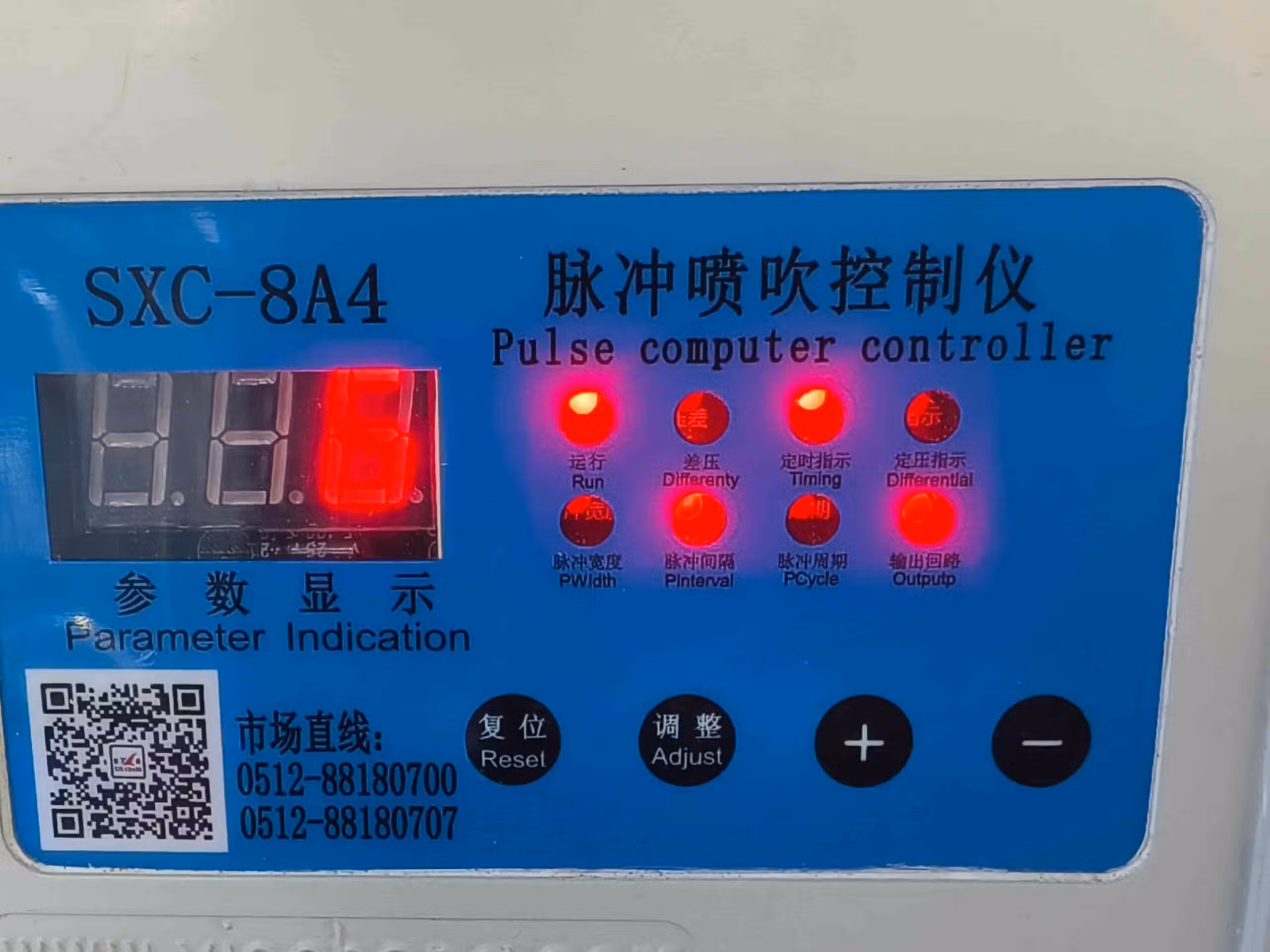

InterfaceHigh-brightness digital display for parameter setup and sequence monitoring
ApplicationsSteel, cement, mining, biomass, woodworking, chemical processing, and pneumatic conveying
Product Videos
Related demonstrations and selection videos.
Certifications
Third-party certified for this product line.
🔍 Click to enlargeProduct Certification
Models covered (5)
SXC-8A · SXC-X8A1 · SXC-X8A4 · SXC-X8A6 · SXC-X8A7
CE Statement of Compliance (EMC) — SXC-8A / SXC-X8A Series Pulse Controller (UL-CCIC)
| Certificate No. | 4790933465-S1 |
|---|---|
| Issued by | UL-CCIC Company Limited |
| Issued | 2023-08-21 |
| Standards | EN IEC 61000-6-4:2019, EN IEC 61000-6-2:2019 |
