PPS / PTFE Composite High-Temperature Filtration Media

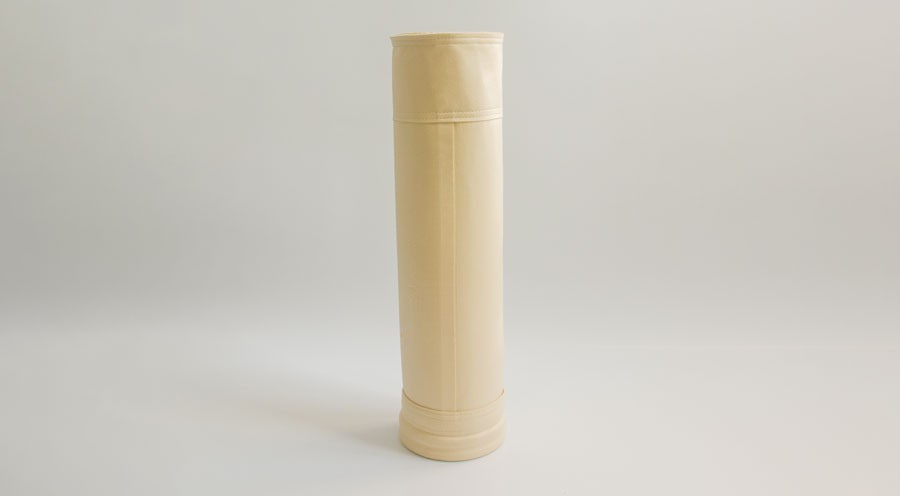

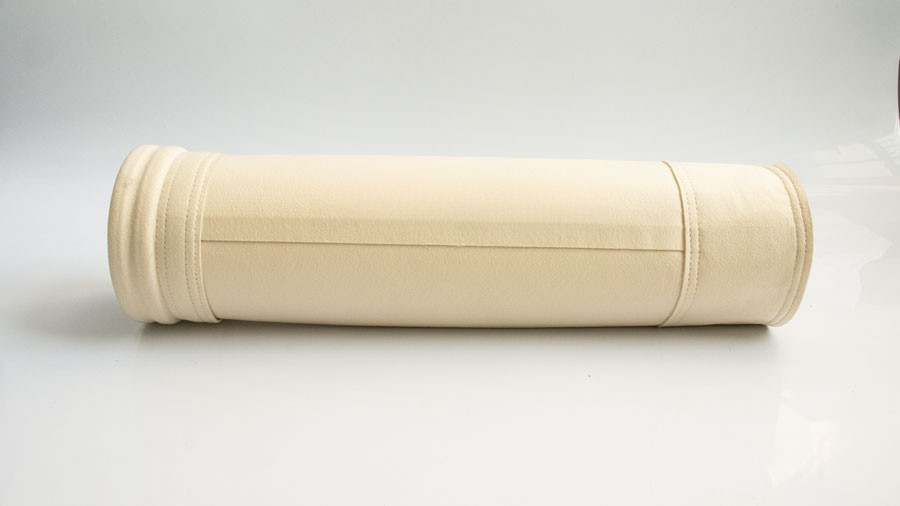

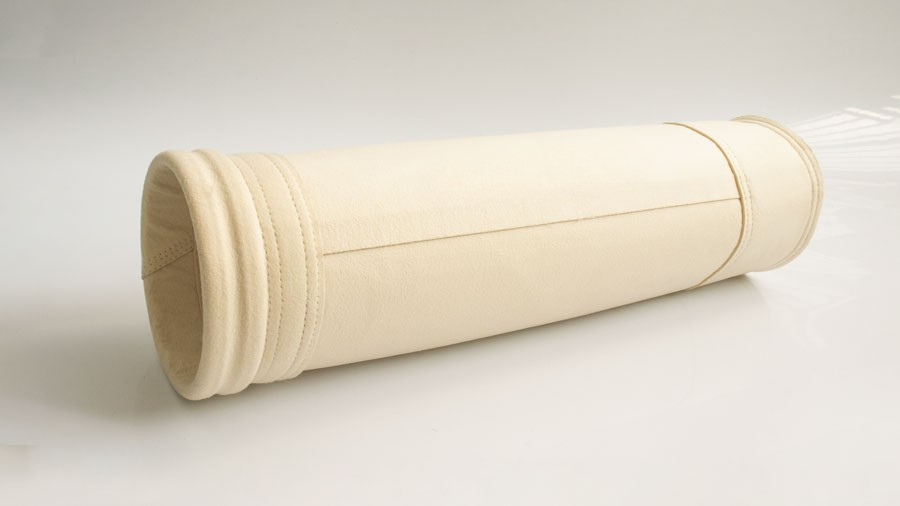

PPS & PTFE Composite High-Temperature Filter Bag

PPS and PTFE fibers integrated into a uniform three-dimensional filtration matrix — engineered for continuous 160°C operation, 190°C temperature surges, ultra-low emissions, low running resistance, and reliable service in corrosive, sulfur-bearing flue gas.

Xiechang® PPS and PTFE composite high-temperature filter bag manufacturer

Technical Parameters

Core operating specification.

Continuous Operating Temp160°C
Peak Surge Temp190°C
Emission PerformanceUltra-low, via precision micro-porous filtration
Running ResistanceLow, from a uniform 3D porous structure
Chemical DurabilityResists oxidation, hydrolysis, acids, alkalis, and organic solvents
Mechanical DurabilityHigh strength and wear resistance
Pulse PressureReinforced bag tops withstand up to 0.6 MPa

Full Model Range

Standard model and size range.

Typical standard configurations shown below. Engineered to be fully compatible with system designs using ASCO™ and Goyen™ pulse jet valves.

ModelMaterialWeight (g/m²)Diameter × Length (mm)Max Continuous Temp
XC-PPS-PTFE-130x2450PPS / PTFE Composite Needle Felt500–550Ø130 × 2450160 °C (surge 190 °C)
XC-PPS-PTFE-130x3050PPS / PTFE Composite Needle Felt500–550Ø130 × 3050160 °C (surge 190 °C)
XC-PPS-PTFE-152x3000PPS / PTFE Composite Needle Felt500–550Ø152 × 3000160 °C (surge 190 °C)
XC-PPS-PTFE-160x4000PPS / PTFE Composite Needle Felt500–550Ø160 × 4000160 °C (surge 190 °C)
XC-PPS-PTFE-160x6000PPS / PTFE Composite Needle Felt500–550Ø160 × 6000160 °C (surge 190 °C)
Any size, any spec — 100% customized to your system.Request custom sizes →

Product Standards

Built for chemically aggressive industrial flue gas.

Filtration DutyIndustrial dedusting and particulate control in corrosive, sulfur-bearing flue gas
Application IndustriesIron and steel, cement, building materials, chemical processing, power generation, district heating, coal-fired boilers, and waste incineration
Pulse Valve CompatibilityASCO SCG353A0xx / G353A0xx and Goyen CA series
Fiber CompositionPPS and PTFE composite fiber filtration layer

Knowledge Base

Practical answers for this product.

View All
Applications

Will switching to high-performance PTFE-membrane filter bags fix chronic clogging on its own?

Not by itself. A PTFE membrane gives a smooth surface that releases dust well and helps pulse cleaning, and it suits fine or high-temperature dust — but media is only one part of the system. Process-specific problems such as oily or hydrocarbon-laden dust, or spark risk, still need matching controls: a spark arrestor, a continuous pre-coat, clean dry compressed air, and proactive valve/diaphragm maintenance. Upgrade the media and the process controls together, not the media alone.

PTFE membrane filter baghigh-performance filter mediamedia selection
