DCF-Y Immersed Pulse Valve
Immersed pulse valve series for high-flow, fast-response baghouse filter cleaning.
Technical Parameters
Core operating specification.
SeriesDCF-Y
Working Pressure0.2-0.6 MPa
Working MediumClean, dry compressed air
VoltageDC24V; AC220V / 50Hz optional
Protection LevelIP65
Operating Temperature-20 C to +55 C standard
Diaphragm Service LifeApproximately 1 million cycles under specified conditions
Full Model Range
DCF-Y model range
0.2-0.6 MPa / IP65 / CE, CCC, RoHS
| Type | Model No. | Size | DN Size | Grade / Notes |
|---|---|---|---|---|
| Immersed | DCF-Y-25 | 1" | DN25 | Single diaphragm |
| Immersed | DCF-Y-40S | 1.5" | DN40 | Double diaphragm |
| Immersed | DCF-Y-50S | 2" | DN50 | Double diaphragm |
| Immersed | DCF-Y-62S | 2.5" | DN65 | Double diaphragm |
| Immersed | DCF-Y-76S | 3" | DN80 | Double diaphragm |
| Immersed | DCF-Y-102S.B | 3.5" | DN90 | Double diaphragm |
| Immersed | DCF-Y-102S | 4" | DN100 | Double diaphragm |
Product Standards
Industrial pulse-valve specifications.
CertificationsCE, CCC, RoHS
ManufacturerSuzhou Xiechang Environmental Protection Technology Co., Ltd.
ApplicationPulse-jet baghouse and industrial dust-collection cleaning systems
Product Videos
Related demonstrations and selection videos.
DCF-Y-76S Pulse Valve Air Leaking Test
DCF-Y Immersed Pulse Valve
Immersed vs Right-Angle Pulse Valve: Key Features and Selection Guide
Installation instructions for immersed pulse valve
Selection instruction for immersed pulse valve for industrial dust collector
Certifications
Third-party certified for this product line.
🔍 Click to enlargeProduct Certification
Models covered (19)
DCF-Z-25-E · DCF-Z/Y/ZM-20 · DCF-Z/Y/T/ZM-25 · DCF-Z/Y/T/ZM-40S · DCF-Z/Y/T-50S · DCF-Z/Y-62S · DCF-Z/Y-76S · DCF-Z/Y-102S.B · DCF-Z/Y-102S · DCF-Y-115S · DCF-Z/Y/ZM-20-E · DCF-Z/Y/T/ZM-25-E · DCF-Z/Y/T/ZM-40S-E · DCF-Z/Y/T-50S-E · DCF-Z/Y-62S-E · DCF-Z/Y-76S-E · DCF-Z/Y-102S.B-E · DCF-Z/Y-102S-E · DCF-Y-115S-E
SGS CE Verification of Compliance (EMC) — DCF Series Pulse Valves
| Certificate No. | SHEM250300138601HSC |
|---|---|
| Issued by | SGS-CSTC Standards Technical Services Co., Ltd. |
| Issued | 2025-03-25 |
| Standards | EN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019 |
🔍 Click to enlargeProduct Certification
Models covered (9)
DCF-Y-20/25/40S/50S/62S/76S/102S.B/102S/115S (incl. -JC/C/D/E) · DCF-Z-20/25/40S/50S/62S/76S/102S.B/102S/115S (incl. -JC/C/D/E) · DCF-ZM-20/25/40S (incl. -JC/C/D/E) · DCF-T-25S/40S/50S (incl. -JC/C/D/E) · DMY-II-80 (incl. -JC/C/D/E) · DCF-Y-76S/II-00 (incl. -JC/C/D/E) · DCF-YQ-76S/102S.B/102S (incl. -JC/C/D/E) · DCF-YA-76S/102S.B/102S (incl. -JC/C/D/E) · DCF-Y-20/25/40S/50S/62S/76S/102S.B/102S/115S
EAC Declaration of Conformity — Solenoid Pulse Valves (DCF / DMY Series)
| Certificate No. | ЕАЭС N RU Д-CN.РА04.В.44367/26 |
|---|---|
| Issued by | Declared by OOO 'Center of Metrology and Standardization' (Moscow) as authorized representative; registered in the Eurasian Economic Union conformity register |
| Issued | 2026-05-21 |
| Valid until | 2031-05-20 |
| Standards | ТР ТС 010/2011, ТР ТС 020/2011, ГОСТ 12.2.003-91, ГОСТ 30804.6.2-2013, ГОСТ 30804.6.4-2013, ГОСТ 15150-69, ГОСТ IEC 61000-6-4-2016 |
🔍 Click to enlargeProduct Certification
DCF-TZ · DCF-TZ-XQA · DCF-TZ-XQB
CE Statement of Compliance (EMC) — DCF-TZ Solenoid Coil (UL-CCIC)
| Certificate No. | 4790933465-S2 |
|---|---|
| Issued by | UL-CCIC Company Limited |
| Issued | 2023-08-21 |
| Standards | EN IEC 61000-6-4:2019, EN IEC 61000-6-2:2019 |
🔍 Click to enlargeProduct Certification
DCF series
CCEP Environmental Protection Product Certification — DCF Solenoid Pulse Valves
| Certificate No. | CCAEPI-EP-2026-039 |
|---|---|
| Issued by | CCAEPI — China Association of Environmental Protection Industry (Beijing) Certification Center |
| Issued | 2026-01-15 |
| Valid until | 2029-01-14 |
| Standards | HJ/T 284-2006 |
Technical Drawings
Installation dimensions for this product.
🔒 Dimensions available on inquiryDCF-Y-102S

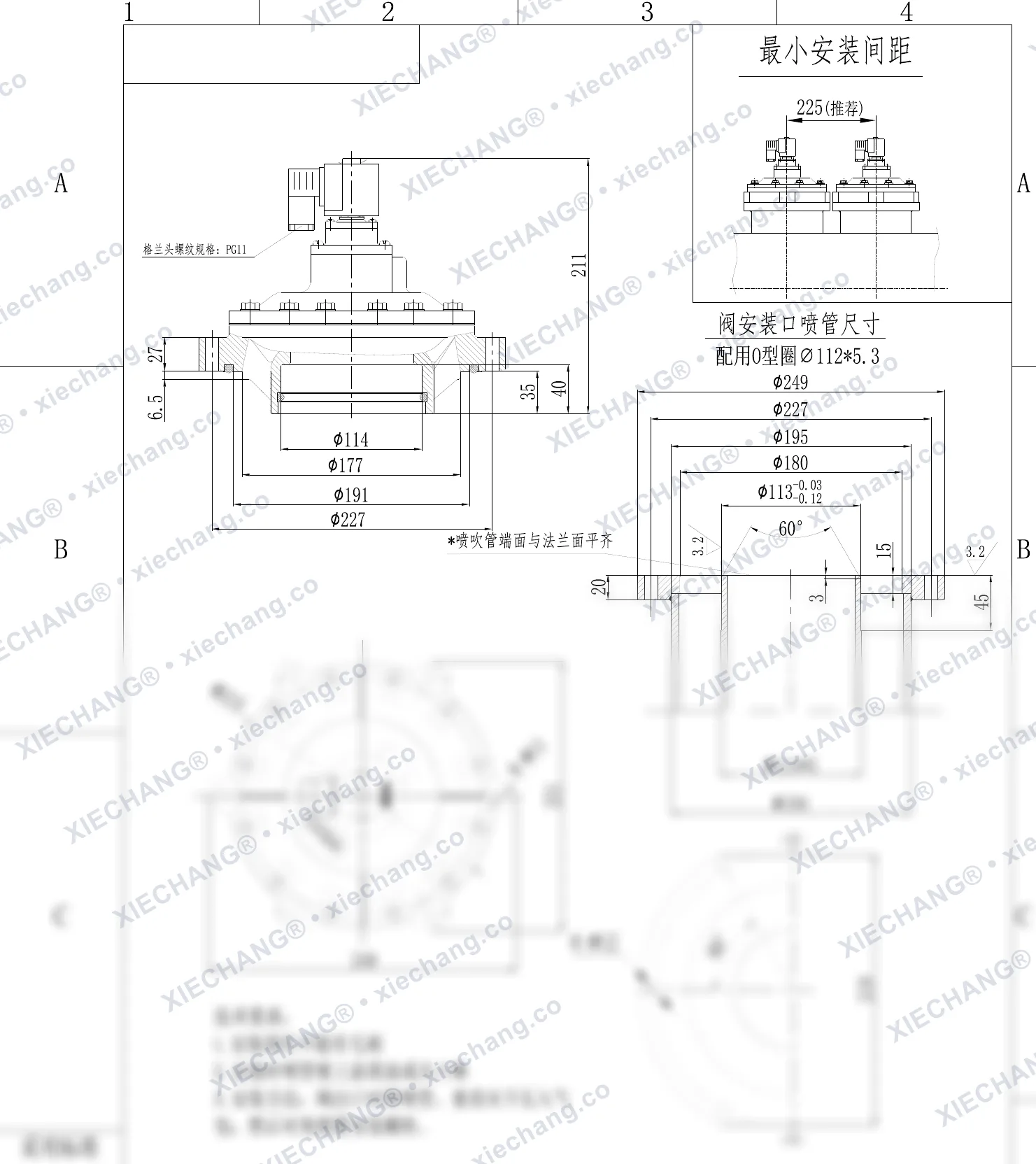

DCF-Y-102S · 4" · immersed/submerged pulse valve — Installation Drawing
| Overall height | 🔒 |
|---|---|
| Flange thickness | 🔒 |
| Flange step | 6.5 mm |
| Neck height | 🔒 |
| Neckto base | 40 mm |
| Flange diameter inner | Ø114 mm |
+22 more dimensions
🔒 Dimensions available on inquiryDCF-Y-102S.B(102*6)
DCF-Y-102S.B(102*6) · 3.5" · immersed/submerged pulse valve — Installation Drawing
| Overall height | 🔒 |
|---|---|
| Flange thickness | 27 mm |
| Neck height | 🔒 |
| Flange thickness total | 🔒 |
| Flange diameter inner | Ø103 mm |
| Flange diameter | Ø160 mm |
+20 more dimensions
🔒 Dimensions available on inquiryDCF-Y-115S
DCF-Y-115S · 4.5" · immersed/submerged pulse valve — Installation Drawing
| Overall depth | 🔒 |
|---|---|
| Flange thickness | 🔒 |
| Neck height | 🔒 |
| Flange thickness total | 43 mm |
| Flange diameter inner | Ø195.2 mm |
| Flange diameter | Ø202.2 mm |
+14 more dimensions
🔒 Dimensions available on inquiryDCF-Y-25
DCF-Y-25 · 1" · immersed/submerged pulse valve (threaded) — Installation Drawing
| Overall height | 140 mm |
|---|---|
| Outlet thread length | 🔒 |
| Flange to outlet | 🔒 |
| Outlet step | 🔒 |
| Thread outer diameter | Ø35 mm |
| Flange diameter | Ø59 mm |
+9 more dimensions
🔒 Dimensions available on inquiryDCF-Y-40S

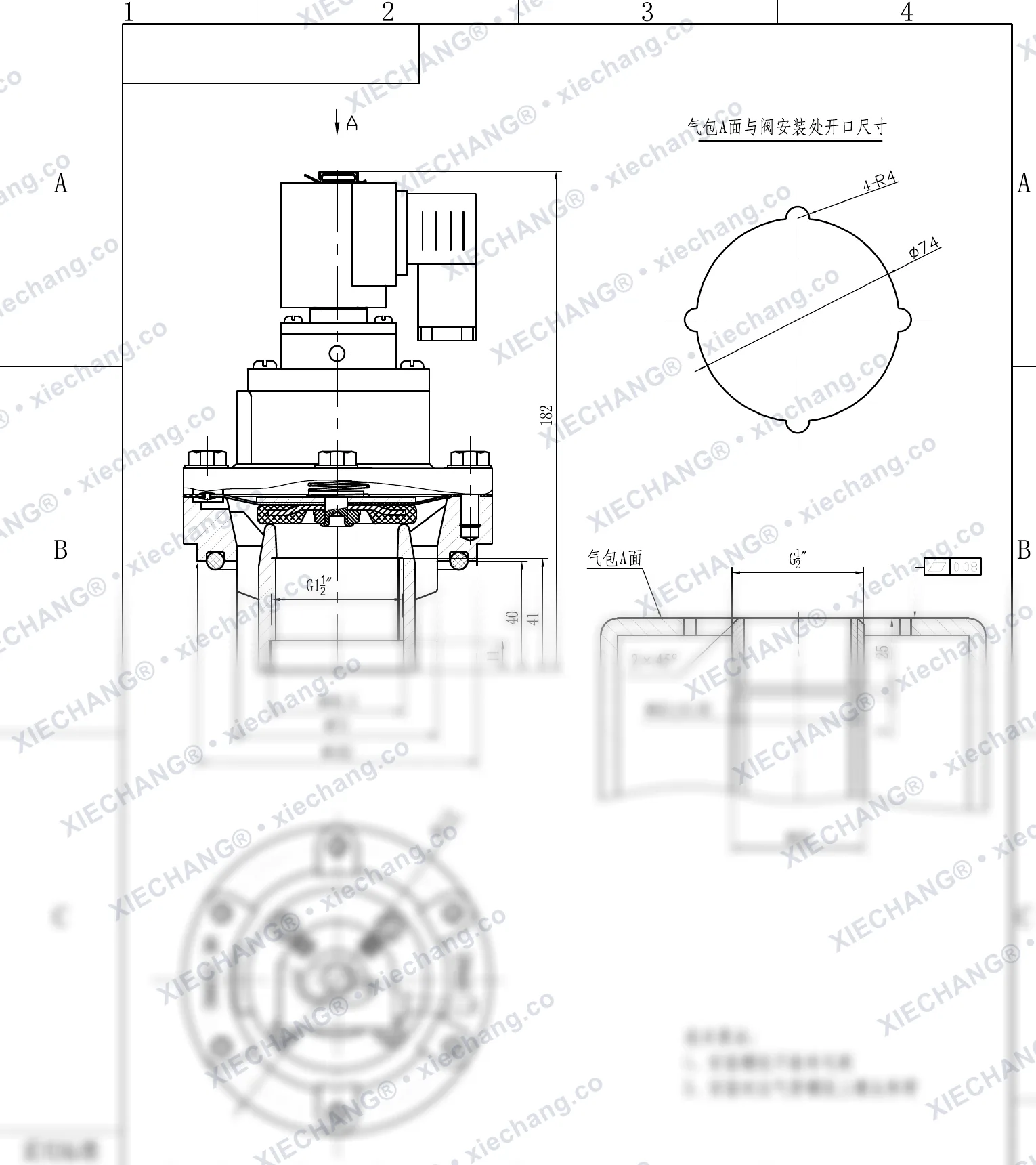

DCF-Y-40S · 1.5" · immersed/submerged pulse valve (threaded) — Installation Drawing
| Overall height | 182 mm |
|---|---|
| Flange to outlet | 40 mm |
| Outlet thread length | 🔒 |
| Outlet step | 11 mm |
| Thread outer diameter | 🔒 |
| Flange diameter | 🔒 |
+10 more dimensions

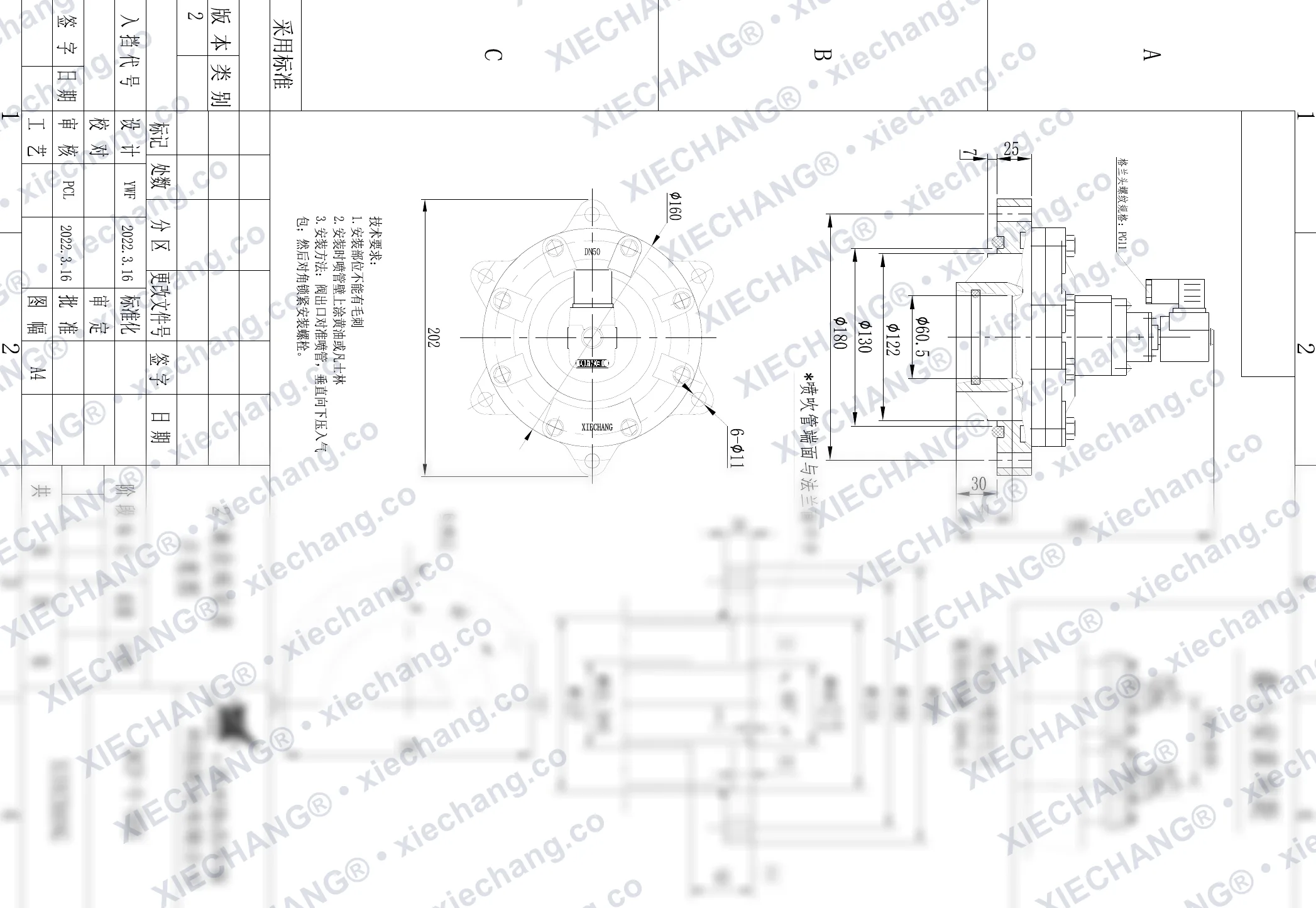

🔒 Dimensions available on inquiryDCF-Y-50S
DCF-Y-50S · 2" · immersed/submerged pulse valve — Installation Drawing
| Body diameter | Ø160 mm |
|---|---|
| Top view width | 202 mm |
| Bolt hole diameter | 🔒 |
| Bolt hole count | 6 |
| Flange step | 🔒 |
| Flange thickness | 🔒 |
+19 more dimensions

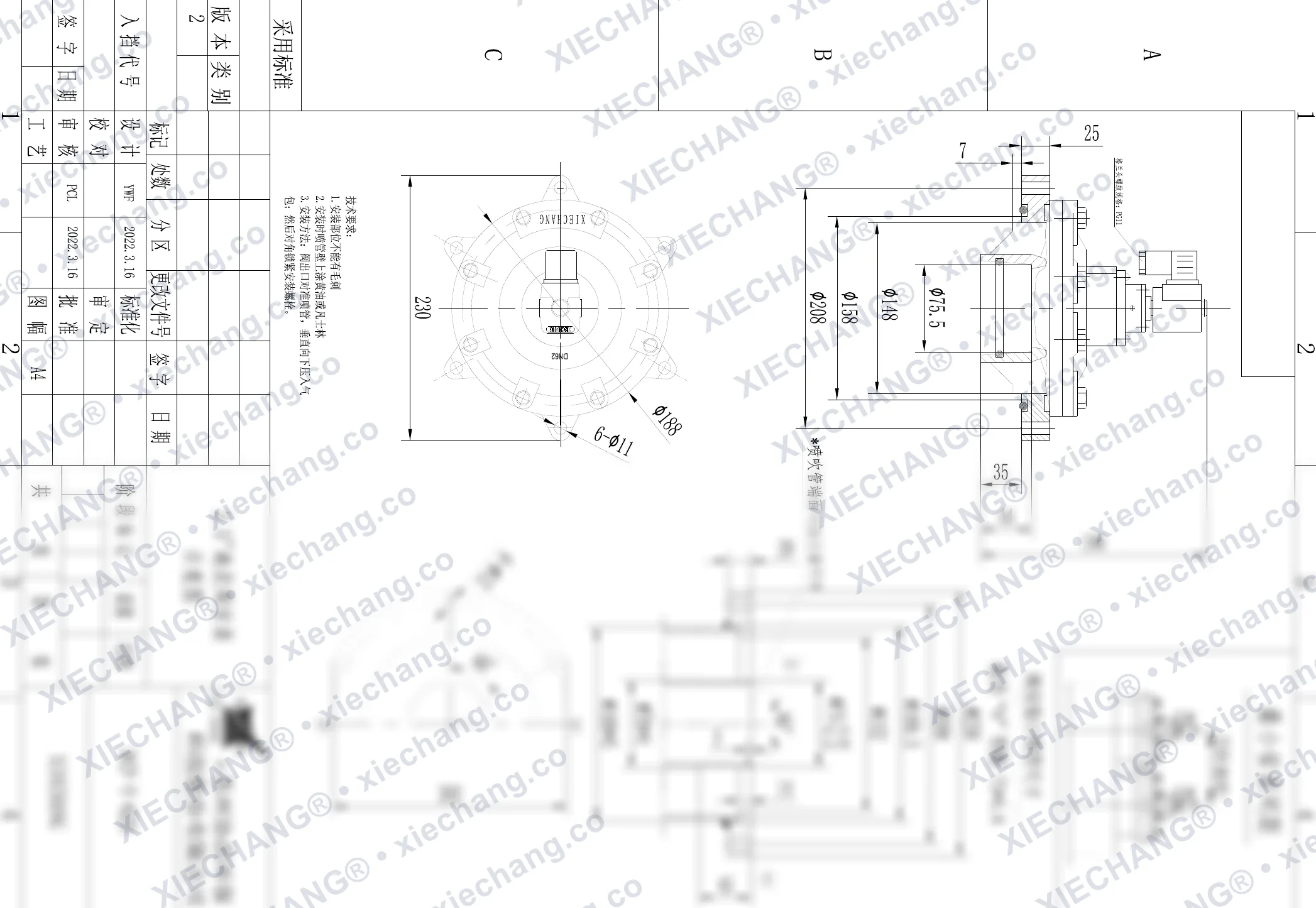

🔒 Dimensions available on inquiryDCF-Y-62S
DCF-Y-62S · 2.5" · immersed/submerged pulse valve — Installation Drawing
| Body diameter | 🔒 |
|---|---|
| Top view width | 230 mm |
| Bolt hole diameter | 🔒 |
| Bolt hole count | 🔒 |
| Flange step | 7 mm |
| Flange thickness | 25 mm |
+21 more dimensions
🔍 Click to enlargeDCF-Y-76S-II

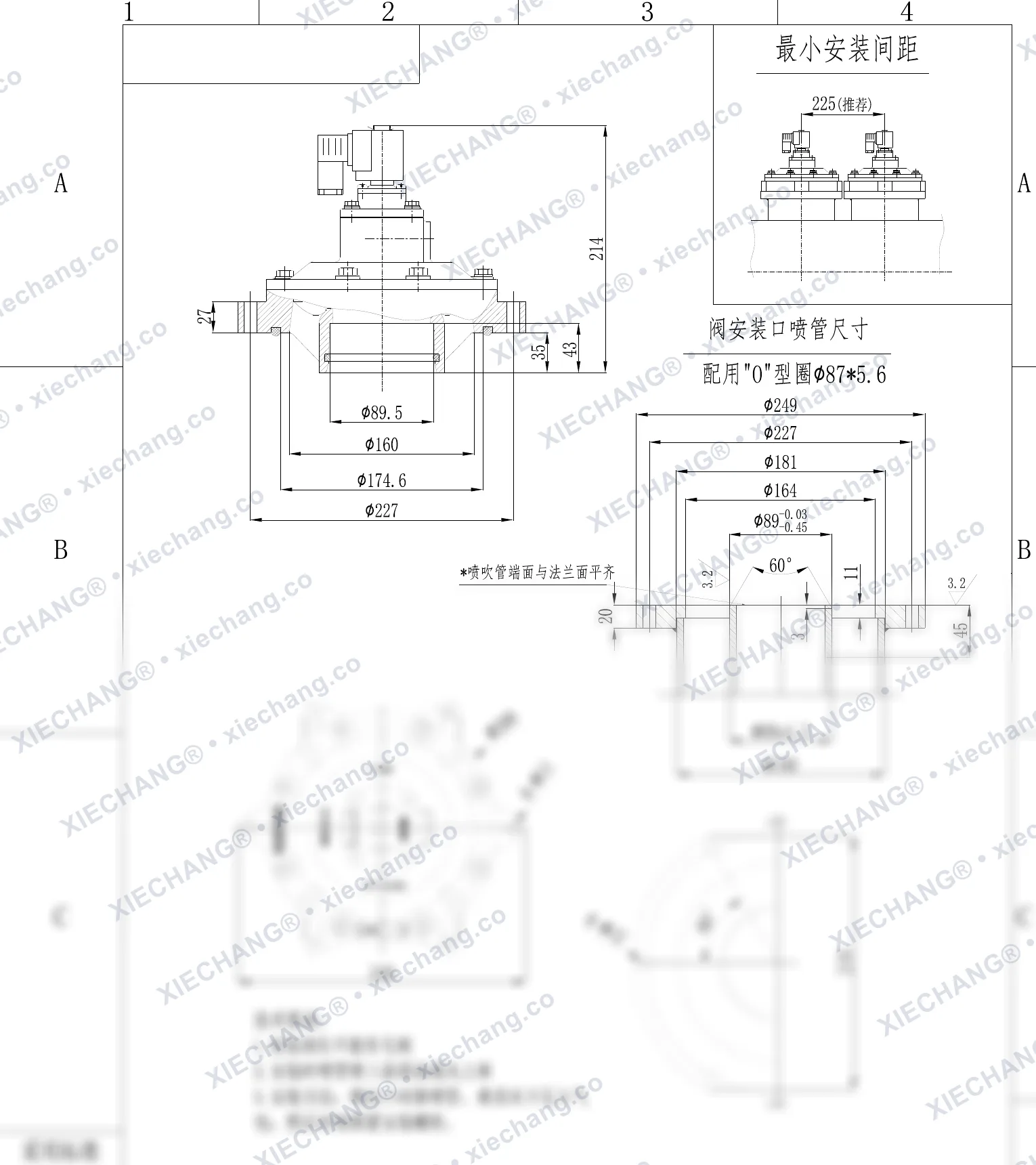

DCF-Y-76S-II · 3" · immersed/submerged pulse valve — Installation Drawing

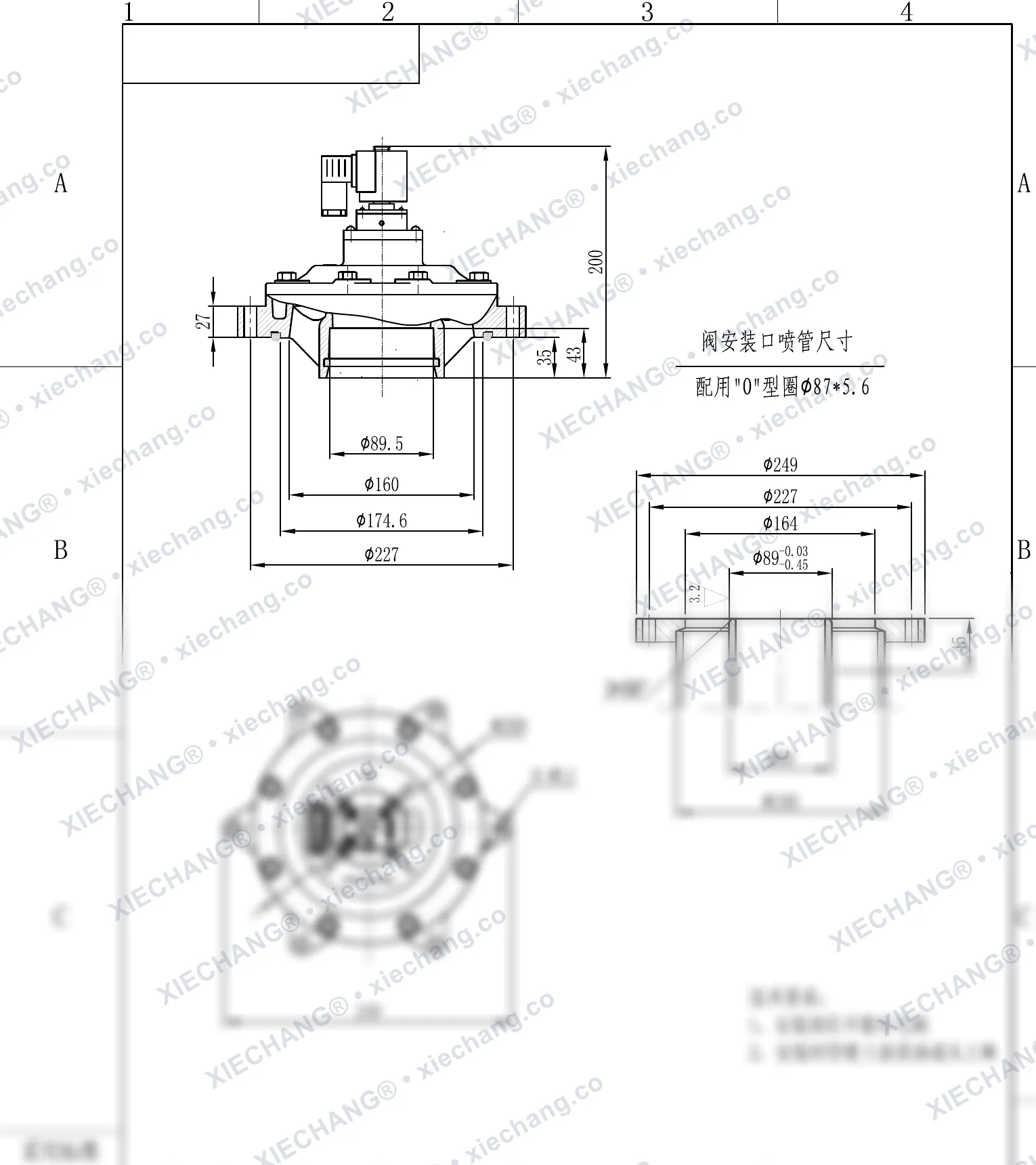

🔒 Dimensions available on inquiryDCF-Y-76S(standard O-ring)
DCF-Y-76S(standard O-ring) · 3" · immersed/submerged pulse valve — Installation Drawing
| Overall height | 200 mm |
|---|---|
| Flange thickness | 🔒 |
| Neck height | 🔒 |
| Flange thickness total | 🔒 |
| Flange diameter inner | Ø89.5 mm |
| Flange diameter | Ø160 mm |
+14 more dimensions
🔒 Dimensions available on inquiryDCF-Y-76S(special O-ring)
DCF-Y-76S(special O-ring) · 3" · immersed/submerged pulse valve — Installation Drawing
| Overall height | 200 mm |
|---|---|
| Flange thickness | 🔒 |
| Neck height | 🔒 |
| Flange thickness total | 🔒 |
| Flange diameter inner | Ø89.5 mm |
| Flange diameter | Ø160 mm |
+15 more dimensions
🔒 Dimensions available on inquiryDCF-YA-76S
DCF-YA-76S · 3" · immersed/submerged pulse valve — Installation Drawing
| Overall height | 🔒 |
|---|---|
| Flange thickness | 54 mm |
| Flange diameter inner | Ø89 mm |
| Flange diameter | Ø187.5 mm |
| Flange outer diameter | 🔒 |
| Bolt circle diameter | 🔒 |
+13 more dimensions
🔒 Dimensions available on inquiryDCF-ZM-20
DCF-ZM-20 · 3/4" · male-thread right-angle pulse valve — Installation Drawing
| Overall height | 🔒 |
|---|---|
| Outlet center height | 58 mm |
| Inlet to outlet center | 38 mm |
| Inlet port diameter | Ø27 mm |
| Inlet bore | 🔒 |
| Inlet depth | 🔒 |
+6 more dimensions

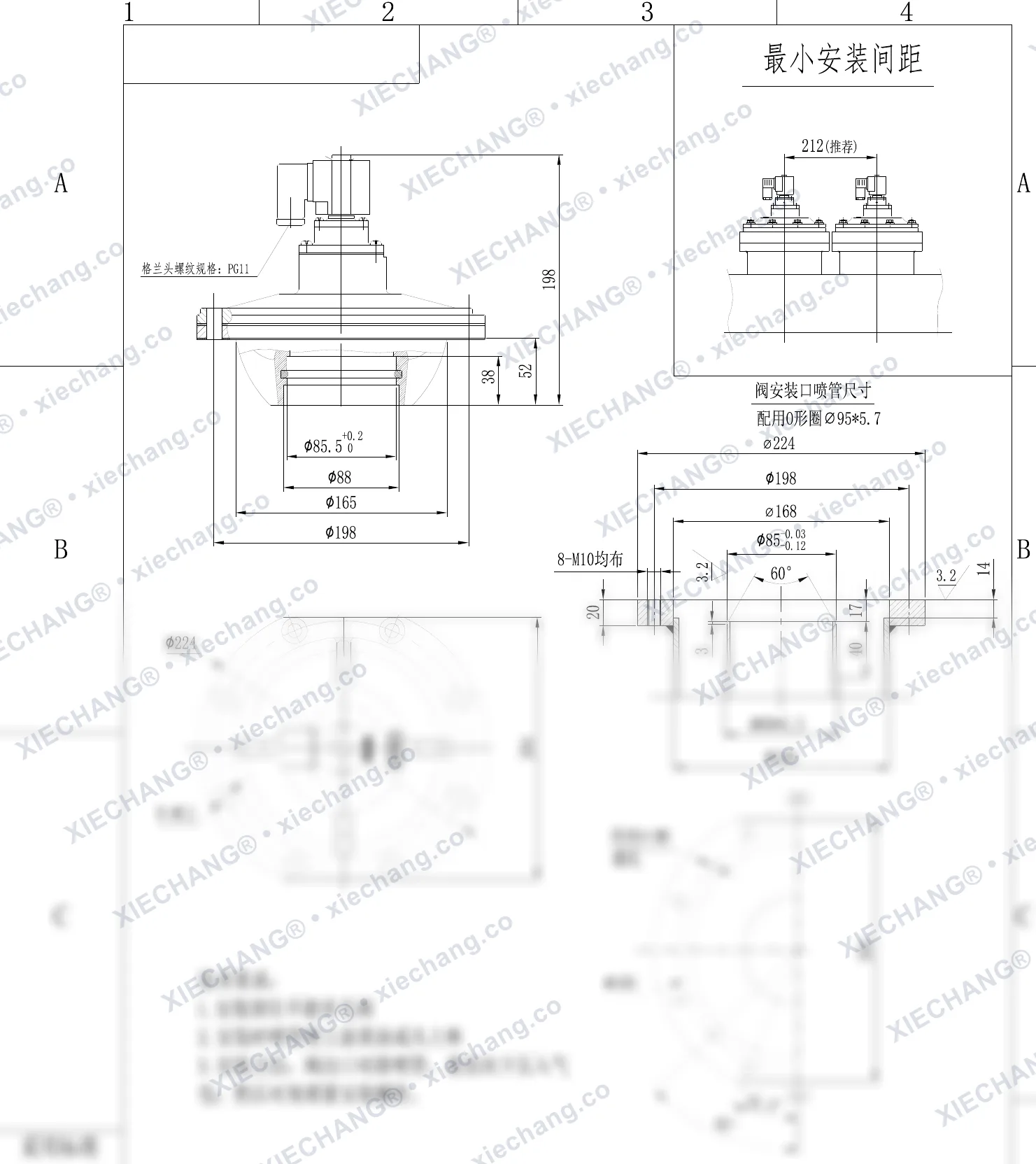

🔒 Dimensions available on inquiryDMY-II-80
DMY-II-80 · 80 (3") · immersed/submerged pulse valve — Installation Drawing
| Overall height | 198 mm |
|---|---|
| Neck height | 38 mm |
| Neckto base | 🔒 |
| Flange diameter inner | Ø85.5 mm |
| Seat bore | 🔒 |
| Flange diameter | 🔒 |
+21 more dimensions

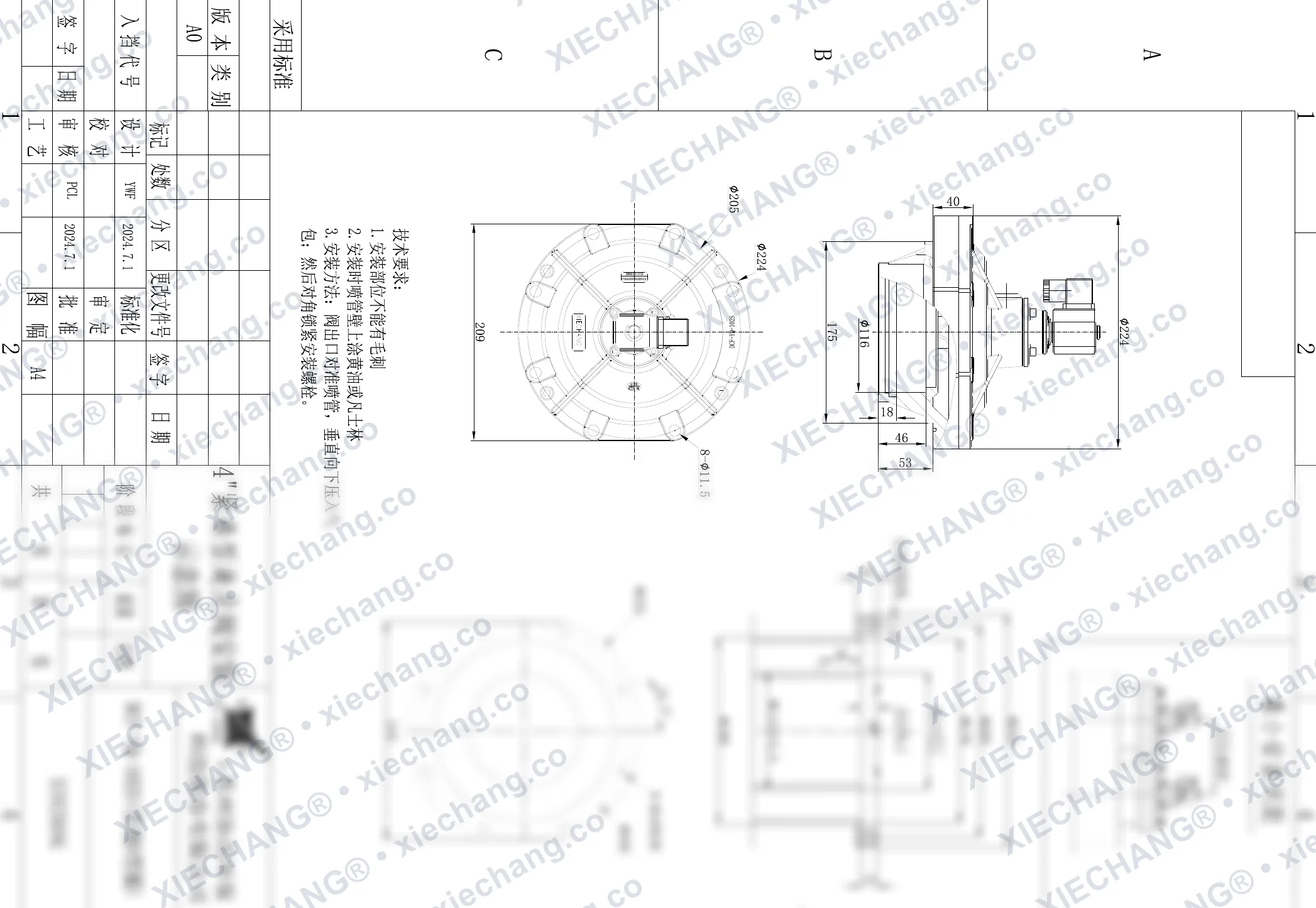

🔒 Dimensions available on inquiryDCF-YQ-102S(standard O-ring)
DCF-YQ-102S(standard O-ring) · 4" · compact/trimmed-edge immersed pulse valve — Installation Drawing
| Bolt circle diameter | Ø205 mm |
|---|---|
| Body diameter | Ø224 mm |
| Top view width | 209 mm |
| Bolt hole diameter | 🔒 |
| Bolt hole count | 🔒 |
| Flange thickness | 🔒 |
+18 more dimensions
🔒 Dimensions available on inquiryDCF-YQ-76S(standard O-ring)
DCF-YQ-76S(standard O-ring) · 3" · compact/trimmed-edge immersed pulse valve — Installation Drawing
| Overall height | 203 mm |
|---|---|
| Neckto base | 41 mm |
| Flange thickness total | 🔒 |
| Flange diameter inner | Ø94 mm |
| Flange diameter | 🔒 |
| Flange outer diameter | 🔒 |
+19 more dimensions
🔒 Dimensions available on inquiryDCF-YQ-76S(special O-ring)
DCF-YQ-76S(special O-ring) · 3" · immersed/submerged pulse valve (compact) — Installation Drawing
| Overall height | 🔒 |
|---|---|
| Flange outer diameter | 🔒 |
| Bolt circle diameter | 🔒 |
| Port diameter | Ø94 mm |
| Inlet height | 36 mm |
| Seat face height | 41 mm |
+8 more dimensions
Knowledge Base
Practical answers for this product.
Specifications
What are the technical parameters of Xiechang DCF-Y immersed (submerged) electromagnetic pulse valves across all sizes?
DCF-Y immersed valves span 1"–4" (DCF-Y-25 to DCF-Y-102S). All share 0.2–0.6 MPa working pressure, 0.3–0.4 MPa recommended blow pressure and 80–150 ms pulse width; air-tank capacity ranges from 45–70 L (1") to 600–1000 L (4"), and driven filter area from 6–10 m² (1") to 100–120 m² (4").
immersed pulse valvesubmerged pulse valveDCF-Y
Specifications
Which O-rings and spray-pipe bore sizes are used in Xiechang and Watson immersed pulse valves?
Each immersed valve size uses a large and a small O-ring plus a matched spray-pipe bore, e.g. 1" (Y-25): large Φ67×5.3, small Φ30×2.65, bore G1"; 4" (Y-102S): large Φ195×7.5, small Φ112×5.3, bore Φ113. Xiechang (DCF-Y) and Watson (WY) immersed valves share the same table.
O-ringO-ring selectionimmersed valve O-ring
