DCF-2L-B - Xiechang Pulse Valve

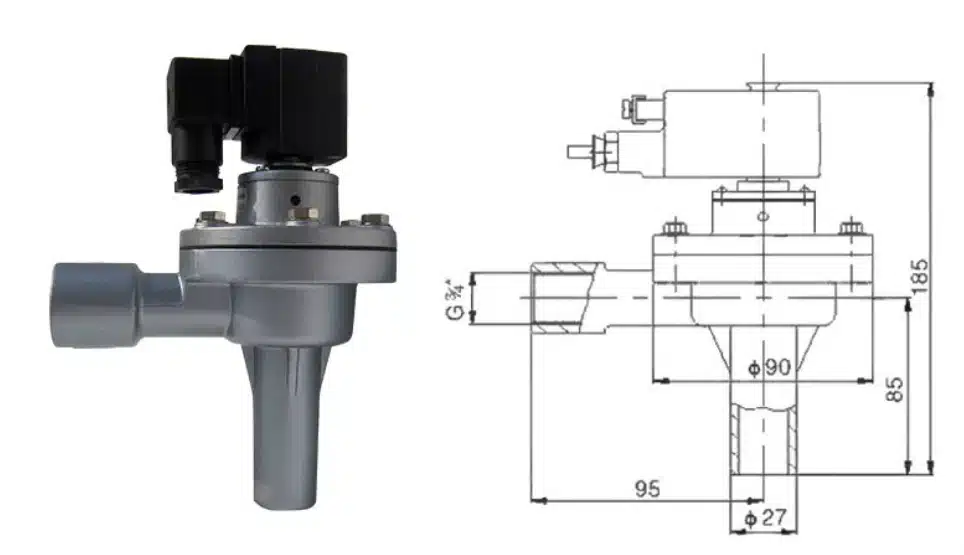

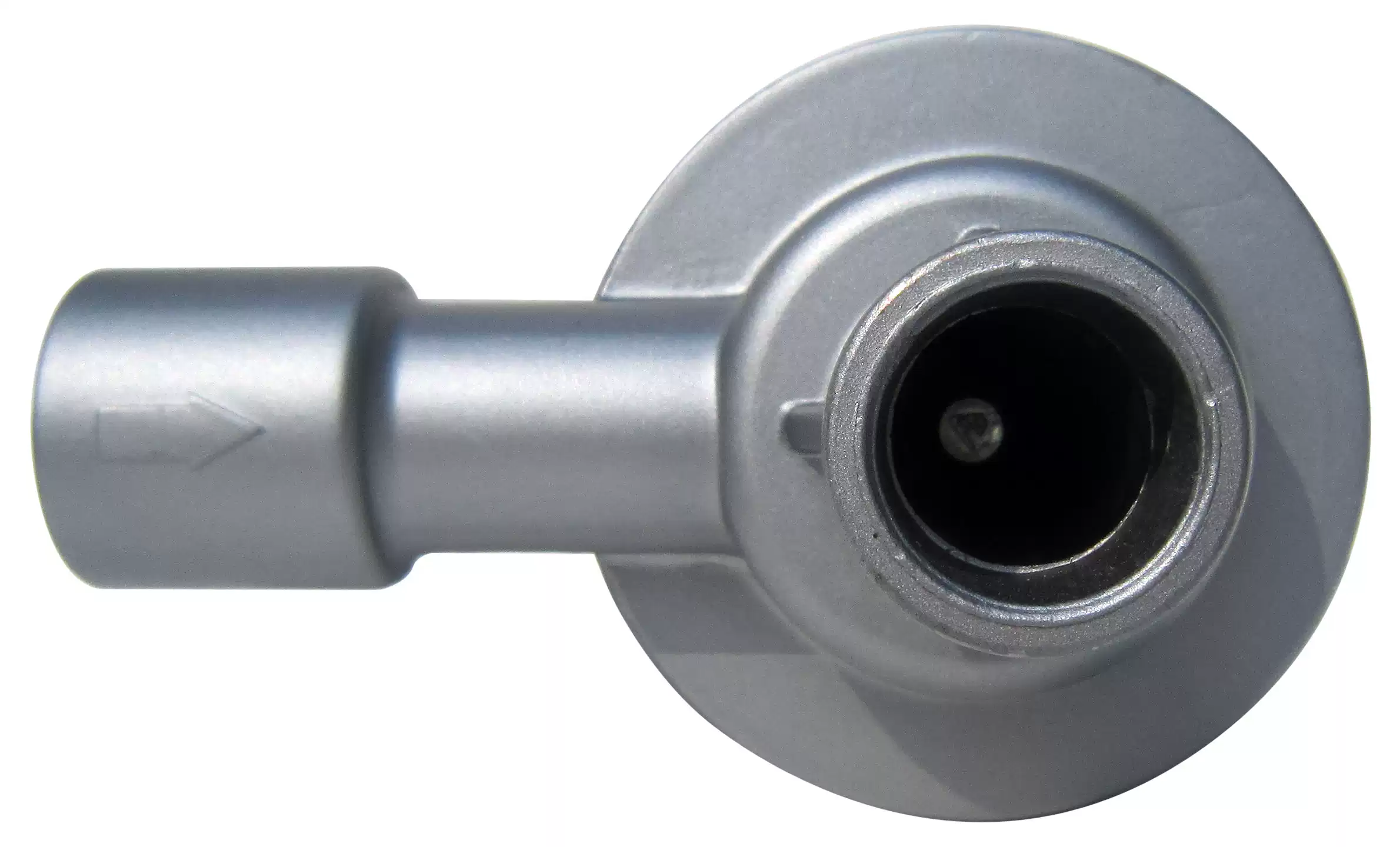

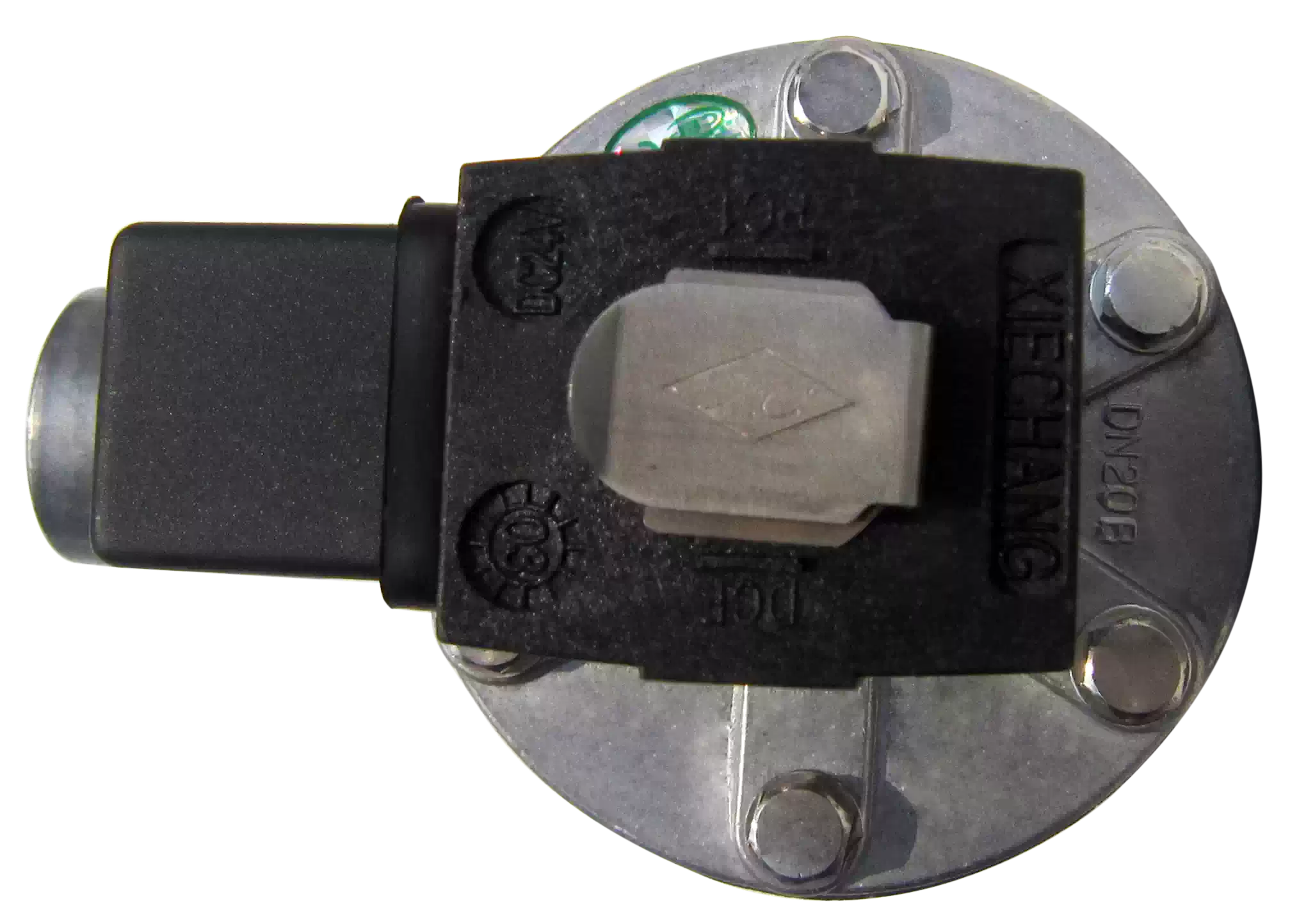

DCF-2L-B Right-Angle Pulse Valve

Compact right-angle pulse valve for industrial dust-collector cleaning systems.

View Model RangeRequest a Quote
DCF-2L-B Right-Angle Pulse Valve

Technical Parameters

Core operating specification.

SeriesDCF-2L-B
Working Pressure0.2-0.6 MPa
Working MediumClean, dry compressed air
VoltageDC24V; AC220V / 50Hz optional
Protection LevelIP65
Operating Temperature-20 C to +55 C standard
Diaphragm Service LifeApproximately 1 million cycles under specified conditions

Full Model Range

DCF-2L-B model range

0.2-0.6 MPa / IP65 / CE, CCC, RoHS

TypeModel No.SizeDN SizeGrade / Notes
Right-AngleDCF-2L-B3/4"DN20G 3/4-inch connection

Product Standards

Industrial pulse-valve specifications.

CertificationsCE, CCC, RoHS
ManufacturerSuzhou Xiechang Environmental Protection Technology Co., Ltd.
ApplicationPulse-jet baghouse and industrial dust-collection cleaning systems

Certifications

Third-party certified for this product line.

View all certificates →
SGS CE Verification of Compliance (EMC) — DCF Series Pulse Valves🔍 Click to enlarge

Product Certification

Models covered (19)

DCF-Z-25-E · DCF-Z/Y/ZM-20 · DCF-Z/Y/T/ZM-25 · DCF-Z/Y/T/ZM-40S · DCF-Z/Y/T-50S · DCF-Z/Y-62S · DCF-Z/Y-76S · DCF-Z/Y-102S.B · DCF-Z/Y-102S · DCF-Y-115S · DCF-Z/Y/ZM-20-E · DCF-Z/Y/T/ZM-25-E · DCF-Z/Y/T/ZM-40S-E · DCF-Z/Y/T-50S-E · DCF-Z/Y-62S-E · DCF-Z/Y-76S-E · DCF-Z/Y-102S.B-E · DCF-Z/Y-102S-E · DCF-Y-115S-E

SGS CE Verification of Compliance (EMC) — DCF Series Pulse Valves

Certificate No.SHEM250300138601HSC
Issued bySGS-CSTC Standards Technical Services Co., Ltd.
Issued2025-03-25
StandardsEN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019
Need the original PDF?
EAC Declaration of Conformity — Solenoid Pulse Valves (DCF / DMY Series)🔍 Click to enlarge

Product Certification

Models covered (9)

DCF-Y-20/25/40S/50S/62S/76S/102S.B/102S/115S (incl. -JC/C/D/E) · DCF-Z-20/25/40S/50S/62S/76S/102S.B/102S/115S (incl. -JC/C/D/E) · DCF-ZM-20/25/40S (incl. -JC/C/D/E) · DCF-T-25S/40S/50S (incl. -JC/C/D/E) · DMY-II-80 (incl. -JC/C/D/E) · DCF-Y-76S/II-00 (incl. -JC/C/D/E) · DCF-YQ-76S/102S.B/102S (incl. -JC/C/D/E) · DCF-YA-76S/102S.B/102S (incl. -JC/C/D/E) · DCF-Y-20/25/40S/50S/62S/76S/102S.B/102S/115S

EAC Declaration of Conformity — Solenoid Pulse Valves (DCF / DMY Series)

Certificate No.ЕАЭС N RU Д-CN.РА04.В.44367/26
Issued byDeclared by OOO 'Center of Metrology and Standardization' (Moscow) as authorized representative; registered in the Eurasian Economic Union conformity register
Issued2026-05-21
Valid until2031-05-20
StandardsТР ТС 010/2011, ТР ТС 020/2011, ГОСТ 12.2.003-91, ГОСТ 30804.6.2-2013, ГОСТ 30804.6.4-2013, ГОСТ 15150-69, ГОСТ IEC 61000-6-4-2016
Need the original PDF?
CE Statement of Compliance (EMC) — DCF-TZ Solenoid Coil (UL-CCIC)🔍 Click to enlarge

Product Certification

DCF-TZ · DCF-TZ-XQA · DCF-TZ-XQB

CE Statement of Compliance (EMC) — DCF-TZ Solenoid Coil (UL-CCIC)

Certificate No.4790933465-S2
Issued byUL-CCIC Company Limited
Issued2023-08-21
StandardsEN IEC 61000-6-4:2019, EN IEC 61000-6-2:2019
Need the original PDF?
CCEP Environmental Protection Product Certification — DCF Solenoid Pulse Valves🔍 Click to enlarge

Product Certification

DCF series

CCEP Environmental Protection Product Certification — DCF Solenoid Pulse Valves

Certificate No.CCAEPI-EP-2026-039
Issued byCCAEPI — China Association of Environmental Protection Industry (Beijing) Certification Center
Issued2026-01-15
Valid until2029-01-14
StandardsHJ/T 284-2006
Need the original PDF?
